EBECRYL® PEG200 DMA

EBECRYL® PEG200DMA (polyethylene glycol di-methacrylate), CAS N° 25852-47-5, is a difunctional monomer which polymerizes when exposed to sources of free radicals. EBECRYL® PEG200DMA forms homopolymers and copolymers. EBECRYL® PEG200DMA is compatible with a wide range of acrylated and methacrylated resins.

Principal: allnex Radcure

Chemical Name: Poly(ethylene glycol) dimethacrylate

Functions: Co-Agent, Crosslinking Agent, Monomer, Reactive Diluent

Chemical Family: Methacrylates

End Uses: 3D Printing Applications, Acrylic Flooring, Anaerobic Adhesive, Chemical Anchoring, Waterproofing

Labeling Claims: High Purity, Non-Irritant, Non-Toxic

Enhanced TDS

Identification & Functionality

Blend
No
Chemical Family
Chemical Name
Country of Origin
Function
Coagent, Crosslinking Agent, Monomer
Product Code
MITM13568
Product Functions
Single Ingredient
Yes
Synonyms
Heneicosaethylene glycol dimethacrylate, Oligoethylene glycol dimethacrylate, Poly(ethylene oxide) dimethacrylate, Polyethylene glycol dimethacrylate, Polyethylene glycol methacrylate, Polyoxyethylene dimethacrylate
Technologies
Product Families

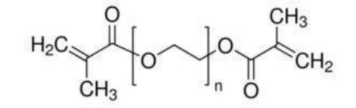

Chemical Structure

 - 1



Note: n = 4

Features & Benefits

Labeling Claims
Product Features
Performance Highlights

EBECRYL® PEG200DMA is characterized by its:

  • Non-toxic, non-sensitizing, non-irritant
  • Low viscosity
  • High purity dimethacrylate resin

EBECRYL® PEG200DMA is used in following applications:

  • Co-monomer to improve mechanical performance and chemical resistance of acrylic polymers, unsaturated polyesters, polyolefins
  • UV and thermally cured applications like anaerobic adhesives, sealants, flexographic printing plates, chemical anchoring

Applications & Uses

Cure Method
Product End Uses
Markets
Applications
Product Applications

EBECRYL® PEG200DMA can be used as a co-agent to optimize curing, processability and mechanical properties of vulcanized rubbers. EBECRYL® PEG200DMA is furthermore used in composites as a stirene alternative and as a crosslinker to improve mechanical properties. Other applications include anaerobic adhesives, formulations for coatings, PVC co-agents and chemical fixing and anchoring.

Properties

Physical Form

Regulatory & Compliance

Compliance (Regulatory)

Safety & Health

Safety Precautions

The toxicological properties of this material have not been fully determined. Products of this type can be expected to be eye and skin irritant and have the potential to cause sensitization or other allergic responses. Appropriate precautions should be taken to avoid eye and skin contact and to avoid inhalation of the aerosols or vapors. Consult the relevant Safety Data Sheet for appropriate handling procedures and protective equipment prior to using this or any other material referred to in this bulletin.

Packaging & Availability

Packaging Type

Principal Information

Group Principal Number
S000001
Principal

Storage & Handling

Storage Conditions

Care should be taken not to expose radical curable products to temperatures exceeding 40°C for prolonged periods or to direct sunlight. This might cause uncontrollable polymerization of the product with generation of heat. Storage and handling should be in stainless steel, amber glass, amber polyethylene or baked phenolic lined containers. Do not store this material under an oxygen free atmosphere. Use dry air to displace material removed from the container. This material should not be stored for more than 2 years.

Other

Appearance
Clear liquid
Color (SDS)
Clear colorless to pale yellow liquid
Item Number
Material Compatibility
Odor (SDS)
Ester acrylate
Other Hazards
Polymerization may occur from excessive heat, contamination or exposure to direct sunlight, Contact with skin may cause a cross-allergic reaction in persons already sensitized to acrylates.
Protect from Freezing
Yes
Temperature Control
Yes
USA/DOT UN Number
Not Applicable
Chemical Properties
ValueUnitsTest Method / Conditions
Acid Valuemax. 1.0mg KOH/g
Assay98.0%Gas Chromatography
Optical Properties
ValueUnitsTest Method / Conditions
Color Scalemax. 100.0APHA
Refractive Index1.463-at 20°C
Physical Properties
ValueUnitsTest Method / Conditions
Density1.08g/cm³
Moisture Contentmax. 0.1%
Molecular Weight336.0Da
Storage Temperature39.0-104.0°F
Viscositymax. 15.0mPa.sat 25°C
SDS Physical and Chemical Properties
ValueUnitsTest Method / Conditions
Boiling Point (SDS)min. 200.0°C
Density (SDS)1.08g/cm³
Flash Point (SDS)max. 100.0°C
Viscosity (SDS)12.0-16.0mPa.sat 25°C
Volatile Content (SDS)max. 0.1%
Shelf Life & Stability
ValueUnitsTest Method / Conditions
Shelf Life2.0yr
