Enhanced TDS
Identification & Functionality
- Blend
- No
- Chemical Family
- Country of Origin
- Product Code
- MITM16894
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- Product Features
Applications & Uses
- Processing Information
- Typical melt temperature - Injection Molding: 210°C - 270°C, Recomended: 240°C.
- Typical mold temperature - Injection molding: 20-60°C
- Drying time and temperature: 65-75°C, 4-6 hours.
Technical Details & Test Data
- Technical Data

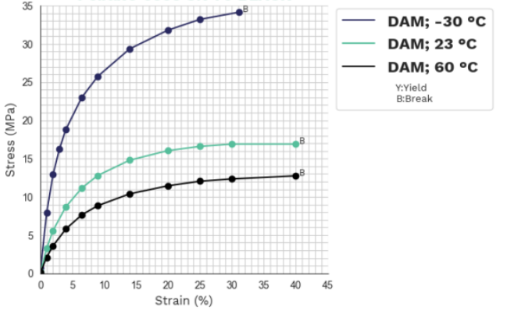

Stress-strain PEBAX® 5533 SN 70 Black

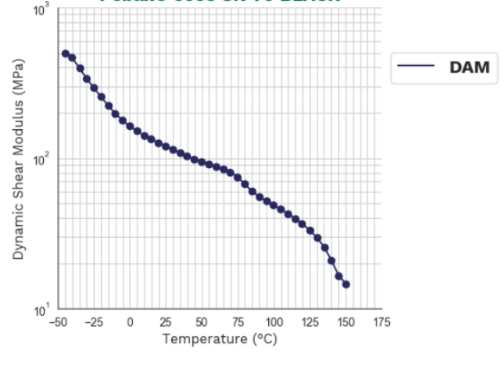

Dynamic Shear Modulus Temperature
Principal Information
- Group Principal Number
- S000003
- Principal
Storage & Handling
- Storage Information
Two years from the date of delivery, when stored properly (sealed bags, appropriate moisture, UV protection and temperature). For any use above this limit, please refer to our technical services.
Other
- Item Number
- Labeling Claims
- Physical Form
- Processing & Application Methods
- Product End Uses
- Protect from Freezing
- No
- Soluble In
- Temperature Control
- No
- USA/DOT UN Number
- Not Available
- Electrical Properties
Value Units Test Method / Conditions Surface Resistivity 5500.0 Ω/sq IEC 62631-3-2 at 23°C, conditioned Volume Resistivity 110000.0 Ω-m IEC 62631-3-1 at 23°C, conditioned, transversal - Mechanical Properties
Value Units Test Method / Conditions Flexural Modulus 310.0 MPa ISO 178 at 23°C, conditioned Hardness 60.0 Shore D at 15s, conditioned Nominal Strain at Break min. 50.0 % ISO 527-1 at 23ºC, 50 mm/min,dry Nominal Strain at Break min. 50.0 % ISO 527-2 at 23°C, 50 mm/min, conditioned Strain at Yield 31.0 % ISO 527-1 at 23ºC, 50 mm/min,dry Strain at Yield 36.0 % ISO 527-2 at 23°C, 50 mm/min, conditioned Stress at Break 29.0 MPa ISO 527-1 at 23°C, 50 mm/min, conditioned Stress at Break 29.0 MPa ISO 527-2 at 23°C, 50 mm/min, conditioned Stress at Yield 18.0 MPa ISO 527-1 at 23ºC, 50 mm/min,dry Stress at Yield 17.0 MPa ISO 527-2 at 23°C, 50 mm/min, conditioned Tensile Modulus 298.0 MPa ISO 527-1 at 23°C, 1 mm/min, conditioned Tensile Modulus 305.0 MPa ISO 527-2 at 23°C, 1 mm/min, dry - Physical Properties
Value Units Test Method / Conditions Density 1.09 g/cm³ ISO 1183-1 A at 23°C Melt Volume-Flow Rate 5.0 cm³/10 min ISO 1133 at 250°C, 5 kg Melting Point 159.0 °C ISO 11357-3 at 10°C/min Melting Point 159.0 °C ISO 11357-1 at 10°C/min Moisture Content 0.5 % ISO 62 at 23°C, 50%HR, equilibrium Water Absorption 1.2 % ISO 62 at 23°C, immersion, equilibrium - Shelf Life & Stability
Value Units Test Method / Conditions Shelf Life 2.0 yr
