Enhanced TDS
Identification & Functionality
- Blend
- No
- Chemical Family
- Chemical Name
- Country of Origin
- Function
- Dye
- Plastics & Elastomers Functions
- Product Code
- MITM14415
- Single Ingredient
- Yes
- Synonyms
- {2H-Benzo[b]pyran-2-one}, 1,2-Benzopyrone, 2-Oxo-1,2-benzopyran, 2-Oxo-2H-1-Benzopyran, 2H-benzo[b]pyran-2-one, 2H-Chromen-2-one, Benzo-alpha-pyrone, Chromen-2-One, Coumarine, o-Hydroxycinnamic acid delta-lactone, o-Hydroxycinnamic lactone
- Technologies
- Product Families
Applications & Uses
- Applicable Processes
- Compatible Polymers & Resins
- Plastics & Elastomers End Uses
- Product Applications
- Transparent and opaque dyeing of PS, SAN, PET, PBT, PMMA, PC and ABS / PC blends.
Properties
- Color (Properties)
- Physical Form
- Notes
* For Styrene-butadiene block copolymer the use of this dye is not recommended.
- Notes
Materials used for testing of Heat stability and Lightfastness:
- PS: BASF Polystyrene 143E
- PA 6: LANXESS Durethan B30S
- SB: BASF Polystyrene 472C
- PA 6.6: LANXESS Durethan A30H 1.0
- ABS: LANXESS Novodur P2X
- PET: Voridian 9921 W
- SAN: BASF Luran 368R
- PBT: LANXESS Pocan B1505
- PMMA: Röhm Plexiglas 7H
- PC: Bayer MaterialScience Makrolon 2800
- TiO₂: Kerr McGee Tronox R-FK-3
Technical Details & Test Data
- Technical Data

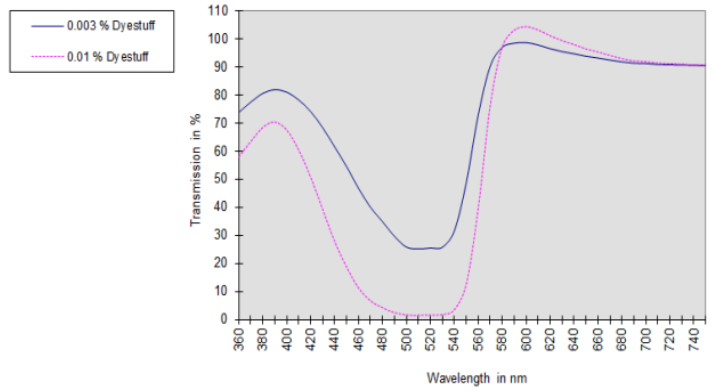

Transmission curve MACROLEX® FLUOR.RED G in GP-PS (2mm thickness):
- Technical Data
Fastness to bleeding:
- Suitability for dyeing household utensils
- No staining of distilled water, 2% by weight acetic acid, 10% by volume ethanol, coconut oil or peanut oil in our test on 0.1% dyeing of PS, ABS, SAN, PMMA, PC, PET and PVC-U.
- The tests were carried out in accordance with the recommendations of the German BfR [for plastic applications (saturated strips of filter paper, 5h at 50°C)].
Purity:
- This dyestuff meets current purity requirements for dyeing household utensils and toys in Europe.
- Technical Data

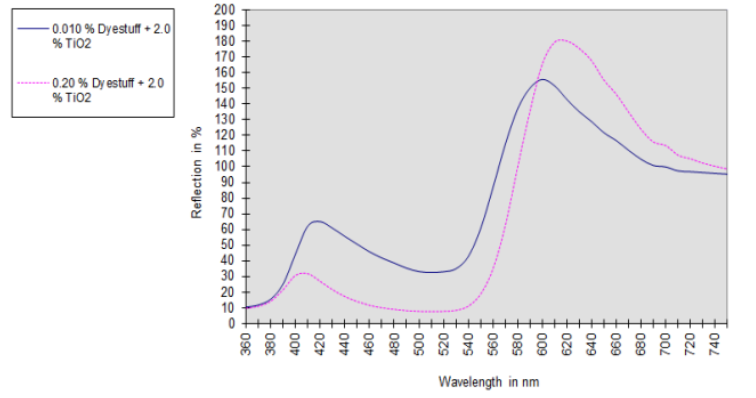

Reflection curve MACROLEX® FLUOR.RED G in GP-PS:
Packaging & Availability
- Packaging Type
Principal Information
- Group Principal Number
- S000008
- Principal
Other
- Appearance
- Fluorescent red with a yellow cast powder uncut
- Appearance (SDS)
- Powder
- Color (SDS)
- Red
- Item Number
- Odor (SDS)
- Odorless
- Other Hazards
- None known
- Temperature Control
- No
- USA/DOT UN Number
- Not Applicable
- Chemical Properties
Value Units Test Method / Conditions Dye Content 0.1 % % Blue Wool Scale (BWS) at 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye, PMMA Dye Content 0.1 % % Blue Wool Scale (BWS) PC, 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye Dye Content 0.2 % % Blue Wool Scale (BWS) PS, at 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye Dye Content 0.1 % % DIN EN ISO 4892-2 at 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye, PMMA Dye Content 0.1 % % DIN EN ISO 4892-2 PC, 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye Dye Content 0.2 % % DIN EN ISO 4892-2 PS, at 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye - Physical Properties
Value Units Test Method / Conditions Bulk Density 0.32 g/cm³ g/cm³ DIN EN ISO 787-11 Density 1.41 g/cm³ g/cm³ at 23°C Melting Point 254.0 °C °C Solubility in Acetone 0.3 g/L g/L at 23°C Solubility in Butyl Acetate 0.2 g/L g/L at 23°C Solubility in Ethanol max. 0.1 g/L g/L at 23°C - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Boiling Point (SDS) min. 260.0 °C °C Regulation (EC) No. 440/2008, Annex, A.2 decomposes before boiling Bulk Density (SDS) 320.0 kg/m³ kg/m³ Density (SDS) 1.41 g/cm³ g/cm³ EU Method A3 at 20°C Melting Point (SDS) 256.0 °C °C Regulation (EC) No. 440/2008, Annex, A.1 Partition coefficient n-octanol/water (SDS) 5.2 - at 25°C, n- octanol/water, log Pow Solubility In Water (SDS) max. 0.003 mg/L mg/L at 20°C Specific Gravity (SDS) 1.41 - Regulation (EC) No. 440/2008, Annex, A.3 at 20°C - Shelf Life & Stability
Value Units Test Method / Conditions Light Fastness 3.0-4.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.100%, 1% titanium dioxide, PMMA, Reduction Light Fastness 5.0 - Blue Wool Scale (BWS) at 1/3 standard depth, dye content 0.1%, with 1% Titanium Dioxide, PC, reduction Light Fastness 7.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.200%, PC, Transparent Light Fastness 7.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.200%, PMMA, Transparent Light Fastness 4.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.200, with 2% titanium dioxide, PS, Reduction Light Fastness 7.0 - Blue Wool Scale (BWS) at 1/3 standard depth, dye content 0.2%, PS, transparent Light Fastness 3.0-4.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.100%, with 1% titanium dioxide, PMMA, Reduction Light Fastness 5.0 - DIN EN ISO 4892-2 at 1/3 standard depth, dye content 0.1%, with 1% Titanium Dioxide, PC, reduction Light Fastness 7.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.200%, PC, Transparent Light Fastness 7.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.200%, PMMA, Transparent Light Fastness 4.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.200, with 2% titanium dioxide, PS, Reduction Light Fastness 7.0 - DIN EN ISO 4892-2 at 1/3 standard depth, dye content 0.2%, PS, transparent Shelf Life 60.0 mo mo - Thermal Properties
Value Units Test Method / Conditions Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PBT Thermal Resistance 350.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PC Thermal Resistance 290.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PET Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PMMA Thermal Resistance 260.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, SAN Thermal Resistance 260.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, SB Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 2% titanium dioxide, PS Thermal Resistance 240.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 4% titanium dioxide, ABS
