Enhanced TDS
Identification & Functionality
- Blend
- No
- CI Name
- CI Number
- Dye Type
- Function
- Dye
- Plastics & Elastomers Functions
- Product Code
- MITM14432
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- Labeling Claims
- Materials Features
Applications & Uses
- Applicable Processes
- Compatible Polymers & Resins
- Plastics & Elastomers End Uses
- Product Applications
- Transparent and opaque dyeing of PS, SAN, PMMA, PC, PET, ABS, ABS / PC blends and PES Fibre.
Properties
- Color (Properties)
- Physical Form
- Notes
* For Styrene-butadiene block copolymer the use of this dye is not recommended.
- Notes
Materials used for testing of Heat stability and Lightfastness:
- PS: BASF Polystyrene 143E
- PA 6: LANXESS Durethan B30S
- SB: BASF Polystyrene 472C
- PA 6.6: LANXESS Durethan A30H 1.0
- ABS: LANXESS Novodur P2X
- PET: Voridian 9921 W
- SAN: BASF Luran 368R
- PBT: LANXESS Pocan B1505
- PMMA: Röhm Plexiglas 7H
- PC: Bayer MaterialScience Makrolon 2800
- TiO₂: Kerr McGee Tronox R-FK-3
Technical Details & Test Data
- Technical Data

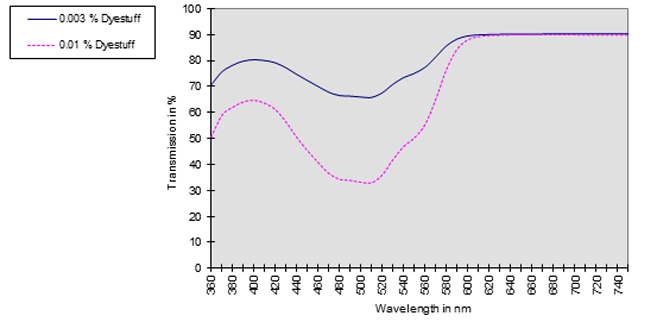

Transmission curve MACROLEX® Red EG Gran in GP-PS (2mm thickness)
- Technical Data
Reflection curve MACROLEX® Red EG Gran in GP-PS:
- Technical Data
Fastness to bleeding:
- Suitability for dyeing household utensils
- No staining of distilled water, 2% by weight acetic acid, 10% by volume ethanol, coconut oil or peanut oil in our test on 0.1% dyeing of PS, ABS, SAN, PMMA, PC, PET and PVC-U.
- The tests were carried out in accordance with the recommendations of the German BfR [for plastic applications (saturated strips of filter paper, 5h at 50°C)].
Purity:
- This dyestuff meets current purity requirements for dyeing household utensils and toys in Europe.
Packaging & Availability
- Packaging Type
Principal Information
- Group Principal Number
- S000008
- Principal
Other
- Appearance
- Red with a yellow cast low dusting microgranulate
- Appearance (SDS)
- Microgranules
- Color (SDS)
- Red
- Item Number
- Odor (SDS)
- Odorless
- Other Hazards
- Prevent dust accumulation, keep away from heat/ sparks/ open flames/ hot surfaces. No smoking Get medical attention if symptoms occur. Store in original container protected from direct sunlight in a dry,cool and well-ventilated area, away from incompatible materials and food and drink, In case of contact, flush skin or eyes with plenty of lukewarm water.
- Temperature Control
- No
- USA/DOT UN Number
- Not Applicable
- Chemical Properties
Value Units Test Method / Conditions Dye Content 0.21 % % Blue Wool Scale (BWS) at 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye, PMMA Dye Content 0.21 % % Blue Wool Scale (BWS) PC, 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye Dye Content 0.4 % % Blue Wool Scale (BWS) PS, at 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye Dye Content 0.21 % % DIN EN ISO 4892-2 at 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye, PMMA Dye Content 0.21 % % DIN EN ISO 4892-2 PC, 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye Dye Content 0.4 % % DIN EN ISO 4892-2 PS, at 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye - Physical Properties
Value Units Test Method / Conditions Bulk Density 0.46 g/cm³ g/cm³ DIN EN ISO 787-11 Density 1.74 g/cm³ g/cm³ at 23°C Melting Point 318.0 °C °C Solubility in Acetone max. 1.0 g/L g/L at 23°C Solubility in Butyl Acetate max. 1.0 g/L g/L at 23°C Solubility in Ethanol max. 1.0 g/L g/L at 23°C - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Bulk Density (SDS) 460.0 - Density (SDS) 1.7-1.8 g/cm³ g/cm³ at 20°C Melting Point (SDS) 604.0 °F °F Solubility In Water (SDS) max. 0.00003 g/L g/L at 20°C pH (SDS) 7.0 - pH (SDS) 7.0 - at concentration: 10% - Shelf Life & Stability
Value Units Test Method / Conditions Light Fastness 8.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.060%, PMMA, Transparent Light Fastness 7.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.060%, with 1% titanium dioxide, PMMA, Reduction Light Fastness 8.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.160%, PC, Transparent Light Fastness 7.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.160%, with 1% titanium dioxide, PC, Reduction Light Fastness 6.0 - Blue Wool Scale (BWS) at 1/3 standard depth, dye content 0.3%, with 2% Titanium Dioxide, PS, reduction Light Fastness 8.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.03%, PS, Transparent Light Fastness 8.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.060%, PMMA, Transparent Light Fastness 7.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.060%, with 1% titanium dioxide, PMMA, Reduction Light Fastness 8.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.160%, PC, Transparent Light Fastness 7.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.160%, with 1% titanium dioxide, PC, Reduction Light Fastness 6.0 - DIN EN ISO 4892-2 at 1/3 standard depth, dye content 0.3%, with 2% Titanium Dioxide, PS, reduction Shelf Life 60.0 - - Thermal Properties
Value Units Test Method / Conditions Thermal Resistance 260.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PA 6 Thermal Resistance 260.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PA 6.6 Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PBT Thermal Resistance 350.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PC Thermal Resistance 290.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PET Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PMMA Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, SAN Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, SB Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 2% titanium dioxide, PS Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 4% titanium dioxide, ABS
