Enhanced TDS
Identification & Functionality
- Blend
- No
- CI Name
- CI Number
- Chemical Family
- Dye Type
- Function
- Dye
- Plastics & Elastomers Functions
- Product Code
- MITM14434
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- Materials Features
Applications & Uses
- Applicable Processes
- Compatible Polymers & Resins
- Plastics & Elastomers End Uses
- Product Applications
- Transparent and opaque dyeing of PS, SAN, ABS and ABS / PC blends.
Properties
- Color (Properties)
- Physical Form
- Notes
Materials used for testing of Heat stability and Lightfastness:
- PS: BASF Polystyrene 143E
- PA 6: LANXESS Durethan B30S
- SB: BASF Polystyrene 472C
- PA 6.6: LANXESS Durethan A30H 1.0
- ABS: LANXESS Novodur P2X
- PET: Voridian 9921 W
- SAN: BASF Luran 368R
- PBT: LANXESS Pocan B1505
- PMMA: Röhm Plexiglas 7H
- PC: Bayer MaterialScience Makrolon 2800
- TiO₂: Kerr McGee Tronox R-FK-3
* For Styrene-butadiene block copolymer the use of this dye is not recommended.
Regulatory & Compliance
- Certifications & Compliance
Technical Details & Test Data
- Technical Data

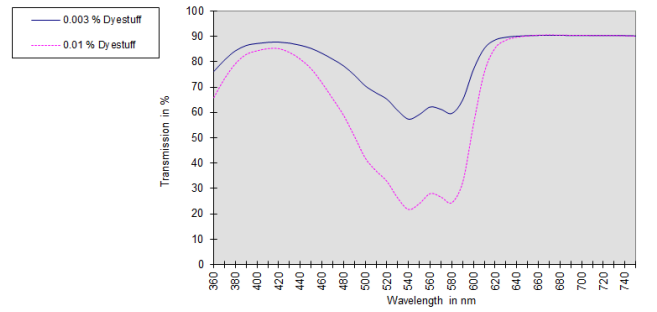

Transmission curve MACROLEX® Red Violet R Gran in GP-PS (2mm thickness):
Packaging & Availability
- Packaging Type
Other
- Appearance
- Red with a violet cast powder
- Appearance (SDS)
- Powder
- Bulk Density
- 0.53 g/cm³
- Bulk Density (SDS)
- 530.0 kg/m³
- Density
- 1.47 g/cm³
- Density (SDS)
- 1.47 g/cm³
- Dye Content
- 0.105 %
- Dye Content
- 0.2 %
- Dye Content
- 0.105 %
- Dye Content
- 0.2 %
- Group Principal Number
- S000008
- Item Number
- Light Fastness
- 7.0-8.0
- Light Fastness
- 6.0-7.0
- Light Fastness
- 7.0-8.0
- Light Fastness
- 6.0
- Light Fastness
- 7.0-8.0
- Light Fastness
- 6.0-7.0
- Light Fastness
- 7.0-8.0
- Light Fastness
- 6.0
- Melting Point
- 186.0 °C
- Melting Point (SDS)
- 186.0 °C
- Odor (SDS)
- Odorless
- Other Hazards
- None known.
- Principal
- Shelf Life
- 60.0 mo
- Solubility in Acetone
- 20.0 g/L
- Solubility in Butyl Acetate
- 20.0 g/L
- Solubility in Ethanol
- 0.7 g/L
- Thermal Resistance
- 280.0 °C
- Thermal Resistance
- 300.0 °C
- Thermal Resistance
- 260.0 °C
- Thermal Resistance
- 280.0 °C
- Thermal Resistance
- 300.0 °C
- Thermal Resistance
- 300.0 °C
- Thermal Resistance
- 280.0 °C
- Thermal Properties
Value Units Test Method / Conditions Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PBT Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PC Thermal Resistance 260.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PET Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, SAN Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, SB Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 2% titanium dioxide, PS Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 4% titanium dioxide, ABS - Chemical Properties
Value Units Test Method / Conditions Dye Content 0.105 % % Blue Wool Scale (BWS) PC, 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye Dye Content 0.2 % % Blue Wool Scale (BWS) PS, at 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye Dye Content 0.105 % % DIN EN ISO 4892-2 PC, 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye Dye Content 0.2 % % DIN EN ISO 4892-2 PS, at 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye - Shelf Life & Stability
Value Units Test Method / Conditions Light Fastness 7.0-8.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.105%, PC, Transparent Light Fastness 6.0-7.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.105%, with 1% titanium dioxide, PC, Reduction Light Fastness 7.0-8.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.200%, PS, Transparent Light Fastness 6.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.200%, with 2% titanium dioxide, PS, Reduction Light Fastness 7.0-8.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.105%, PC, Transparent Light Fastness 6.0-7.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.105%, with 1% titanium dioxide, PC, Reduction Light Fastness 7.0-8.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.200%, PS, Transparent Light Fastness 6.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.200%, with 2% titanium dioxide, PS, Reduction Shelf Life 60.0 mo mo - Physical Properties
Value Units Test Method / Conditions Bulk Density 0.53 g/cm³ g/cm³ DIN EN ISO 787-11 Density 1.47 g/cm³ g/cm³ at 23°C Melting Point 186.0 °C °C Solubility in Acetone 20.0 g/L g/L at 23°C Solubility in Butyl Acetate 20.0 g/L g/L at 23°C Solubility in Ethanol 0.7 g/L g/L at 23°C - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Bulk Density (SDS) 530.0 kg/m³ kg/m³ Density (SDS) 1.47 g/cm³ g/cm³ at 20°C Melting Point (SDS) 186.0 °C °C
