Enhanced TDS
Identification & Functionality
- Blend
- No
- CI Name
- Chemical Family
- Dye Type
- Function
- Dye
- Plastics & Elastomers Functions
- Product Code
- MITM14436
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- Labeling Claims
- Materials Features
Applications & Uses
- Compatible Polymers & Resins
- Plastics & Elastomers End Uses
- Product Applications
Transparent and opaque dyeing of PS, SAN, PMMA, PC, PET, ABS and ABS / PC blends.
Properties
- Color (Properties)
- Physical Form
Technical Details & Test Data
- Technical Data
Fastness to bleeding:
No staining of distilled water, 2% by weight acetic acid, 10% by volume ethanol, coconut oil or peanut oil in our test on 0.1% dyeing of PS, ABS, SAN, PMMA, PC, PET and PVC-U. The tests were carried out in accordance with the recommendations of the German BfR [for plastic applications (saturated strips of filter paper, 5h at 50°C)].

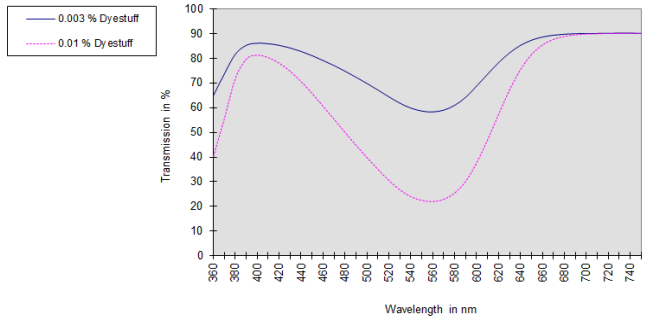

Transmission curve MACROLEX Violet 3R Gran in GP-PS (2mm thickness)
Purity:
This dyestuff meets current purity requirements for dyeing household utensils and toys in Europe.
Reflection curve MACROLEX Violet 3R Gran in GP-PS
Packaging & Availability
- Packaging Type
Principal Information
- Group Principal Number
- S000008
- Principal
Other
- Appearance
- Violet with a red cast microgranulate
- Appearance (SDS)
- Microgranules
- Color (SDS)
- Violet
- Insoluble in (SDS)
- Water
- Item Number
- Odor (SDS)
- Odorless
- Other Hazards
- May form explosible dust-air mixture if dispersed, Handling and/or processing of this material may generate a dust which can cause mechanical irrita-tion of the eyes, skin, nose and throat.
- Temperature Control
- No
- USA/DOT UN Number
- Not Applicable
- Chemical Properties
Value Units Test Method / Conditions Dye Content 0.125 % % DIN EN ISO 4892-2 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye; evaluated with 8-step blue wool scale, PMMA Dye Content 0.125 % % DIN EN ISO 4892-2 PC, 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye; evaluated with 8-step blue wool scale Dye Content 0.22 % % DIN EN ISO 4892-2 PS, 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye; evaluated with 8-step blue wool scale - Material Composition
Value Units Test Method / Conditions Acetone Content 2.0 g/L g/L At 23°C Benzyl Alcohol Content 5.5 g/L g/L At 23°C Ethanol Content 0.2 g/L g/L At 23°C - Physical Properties
Value Units Test Method / Conditions Bulk Density 0.44 g/cm³ g/cm³ DIN EN ISO 787-11 Density 1.3 g/cm³ g/cm³ at 23°C Melting Point 213.0 °C °C Solubility in Butyl Acetate 3.0 g/L g/L at 23°C Solubility in Methyl Methacrylate 8.5 g/L g/L At 23°C Solubility in Methylene Chloride 50.0 g/L g/L At 23°C - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Bulk Density (SDS) 440.0 - Density (SDS) 1.3 - at 68°F Melting Point (SDS) 415.0 °F °F - Shelf Life & Stability
Value Units Test Method / Conditions Light Fastness 7.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.125%, PC, Transparent Light Fastness 7.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.125%, PMMA, Transparent Light Fastness 6.0-7.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.125%, with 1% titanium dioxide, PC, Reduction Light Fastness 6.0-7.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.125%, with 1% titanium dioxide, PMMA, Reduction Light Fastness 7.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.220%, PS, Transparent Light Fastness 6.0-7.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.220%, with 2% titanium dioxide, PS, Reduction Light Fastness 7.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.125%, PC, Transparent Light Fastness 7.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.125%, PMMA, Transparent Light Fastness 6.0-7.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.125%, with 1% titanium dioxide, PC, Reduction Light Fastness 6.0-7.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.125%, with 1% titanium dioxide, PMMA, Reduction Light Fastness 7.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.220%, PS, Transparent Light Fastness 6.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.220%, with 2% titanium dioxide, PS, Reduction Shelf Life 60.0 - - Thermal Properties
Value Units Test Method / Conditions Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PA 6 Thermal Resistance 260.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PA 6.6 Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PBT Thermal Resistance 350.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PC Thermal Resistance 290.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PET Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PMMA Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, SAN Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, SB Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 2% titanium dioxide, PS Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 4% titanium dioxide, ABS
