Enhanced TDS
Identification & Functionality
- Blend
- No
- CI Name
- CI Number
- Chemical Family
- Chemical Name
- Dye Type
- Function
- Dye
- Plastics & Elastomers Functions
- Product Code
- MITM14448
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- Labeling Claims
- Materials Features
Applications & Uses
- Applicable Processes
- Compatible Polymers & Resins
- Plastics & Elastomers End Uses
- Product Applications
Transparent and opaque dyeing of PC, PET, ABS and ABS / PC blends.
Properties
- Color (Properties)
- Physical Form
- Notes
Materials used for testing of Heat stability and Lightfastness
- PS: BASF Polystyrene 143E
- PA 6: LANXESS Durethan B30S
- SB: BASF Polystyrene 472C
- PA 6.6: LANXESS Durethan A30H 1.0
- ABS: LANXESS Novodur P2X
- PET: Voridian 9921 W
- SAN: BASF Luran 368R
- PBT: LANXESS Pocan B1505
- PMMA: Röhm Plexiglas 7H
- TiO₂: Kerr McGee Tronox R-FK-3
- PC: Bayer MaterialScience Makrolon 2800
Technical Details & Test Data
- Technical Data
Fastness to bleeding
No staining of distilled water, 2% by weight acetic acid, 10% by volume ethanol, coconut oil or peanut oil in our test on 0.1% dyeing of PS, ABS, SAN, PMMA, PC, PET and PVC-U. The tests were carried out in accordance with the recommendations of the German BfR [for plastic applications (saturated strips of filter paper, 5h at 50°C)].
Purity
This dyestuff meets current purity requirements for dyeing household utensils and toys in Europe.
- Technical Data

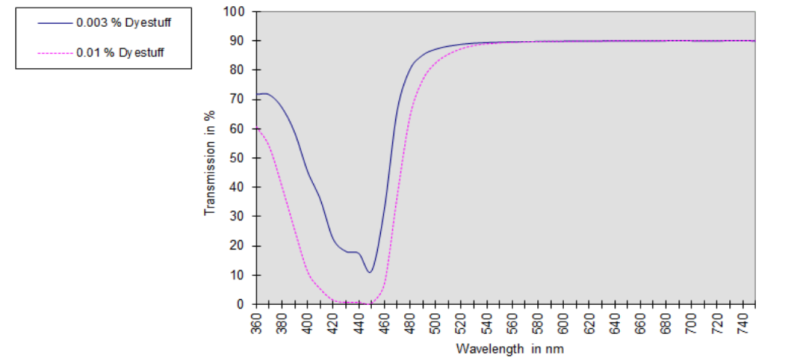

Transmission curve MACROLEX® Yellow G Gran in GP-PS (2mm thickness)

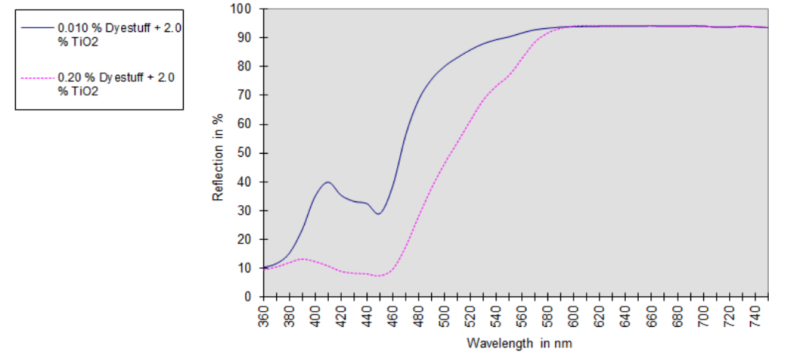

Reflection curve MACROLEX® Yellow G Gran in GP-PS
Packaging & Availability
- Packaging Type
Principal Information
- Group Principal Number
- S000008
- Principal
Other
- Appearance
- Neutral yellow microgranulate
- Appearance (SDS)
- Microgranules
- Color (SDS)
- Yellow
- Insoluble in (SDS)
- Water
- Item Number
- Odor (SDS)
- Odorless
- Other Hazards
- None known
- Temperature Control
- No
- USA/DOT UN Number
- Not Applicable
- Chemical Properties
Value Units Test Method / Conditions Dye Content 0.065 % % DIN EN ISO 4892-2 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide) transparent coloration with 0.05% dye; evaluated with 8-step blue wool scale, PC Dye Content 0.12 % % DIN EN ISO 4892-2 at 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide) transparent coloration with 0.05% dye; evaluated with 8-step blue wool scale, PS Dye Content 0.065 % % DIN EN ISO 4892-2 PMMA 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide) transparent coloration with 0.05% dye; evaluated with 8-step blue wool scale - Material Composition
Value Units Test Method / Conditions Acetone Content 0.5 g/L g/L At 23°C Benzyl Alcohol Content 2.0 g/L g/L At 23°C Ethanol Content 0.1 g/L g/L At 23°C - Physical Properties
Value Units Test Method / Conditions Bulk Density 0.35 g/cm³ g/cm³ DIN EN ISO 787-11 Density 1.59 g/cm³ g/cm³ at 23°C Melting Point 264.0 °C °C Solubility in Butyl Acetate 0.5 g/L g/L at 23°C Solubility in Methyl Methacrylate 1.0 g/L g/L At 23°C Solubility in Methylene Chloride 6.0 g/L g/L At 23°C - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Bulk Density (SDS) 550.0-650.0 - Decomposition Temperature (SDS) min. 500.0 °F °F Density (SDS) 1.59 g/cm³ g/cm³ at 20°C Melting Point (SDS) 507.0 °F °F pH (SDS) 7.0 - at concentration: 10% - Shelf Life & Stability
Value Units Test Method / Conditions Light Fastness 7.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.065%, with 1% titanium dioxide, PC, Reduction Light Fastness 7.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.065%, with 1% titanium dioxide, PMMA, Reduction Light Fastness 8.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.120%, PC, Transparent Light Fastness 8.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.120%, PMMA, Transparent Light Fastness 6.0-7.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.120%, with 2% titanium dioxide, PMMA, Reduction Light Fastness 8.0 - Blue Wool Scale (BWS) at 1/3 standard depth, dye content 0.12%, PS, transparent Light Fastness 7.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.065%, with 1% titanium dioxide, PC, Reduction Light Fastness 7.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.065%, with 1% titanium dioxide, PMMA, Reduction Light Fastness 8.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.120%, PC, Transparent Light Fastness 8.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.120%, PMMA, Transparent Light Fastness 6.0-7.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.120%, with 2% titanium dioxide, PMMA, Reduction Light Fastness 8.0 - DIN EN ISO 4892-2 at 1/3 standard depth, dye content 0.12%, PS, transparent Shelf Life 60.0 - - Thermal Properties
Value Units Test Method / Conditions Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PBT Thermal Resistance 340.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PC Thermal Resistance 290.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PET Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PMMA Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, SAN Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, SB Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 2% titanium dioxide, PS Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 4% titanium dioxide, ABS
