Superior Graphite 5005535

Superior Graphite 5005535 is a purified synthetic graphite manufactured using Superior Graphite’s proprietary electro-thermal purification technology. This continuous high-temperature process exposes raw materials to extremely high temperatures so that impurities, including inorganic contaminants, are sublimed. Superior Graphite 5005535 is a super fine grade within this product line produced using Superior Graphite’s dedicated milling and screening technology. Main uses are wear reduction and increase in thermal and electrical conductivity for high demanding applications.

Principal: Superior Graphite

Functions: Conductive Agent, Friction Reducer, Loss Circulation Material

Chemical Name: Graphite

Chemical Family: Carbon & Carbon-based Compounds

End Uses: Coatings, Lubricants

Applicable Processes: Oilfield Applications

Labeling Claims: Not Listed In California Proposition 65, Odor-free, Silicon Carbide-free

Enhanced TDS

Identification & Functionality

Features & Benefits

Base Chemicals Features
Labeling Claims
Product Characteristics
  • Extremely High Purity
  • Virtually Free of SiC and SiO₂
  • Extremely High Crystallinity
  • Consistent Sizing

Applications & Uses

Applicable Processes
Base Chemicals End Uses

Properties

Physical Form

Technical Details & Test Data

Grain Size

5005535 Purified Synthetic Graphite

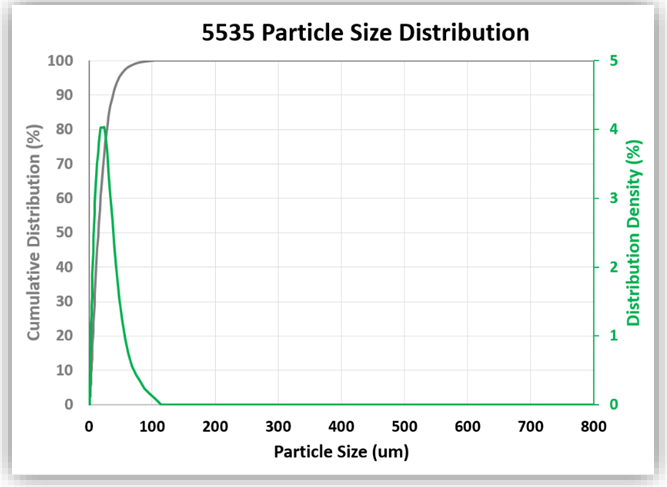

Particle Size Distribution Graph

5005535 Purified Synthetic Graphite

Packaging & Availability

Packaging Type

Principal Information

Group Principal Number
S002461
Principal

Other

Color (SDS)
Silver/ Gray to black
Immiscible In (SDS)
Water
Insoluble in (SDS)
Hot Water
Item Number
Odor (SDS)
Odorless
Other Hazards
None known
Temperature Control
No
USA/DOT UN Number
Not Applicable
Chemical Properties
ValueUnitsTest Method / Conditions
Ash Contentmax. 0.1%
Material Composition
ValueUnitsTest Method / Conditions
Carbon Contentmin. 99.9%
Iron Contentmax. 150.0ppmInductively Coupled Plasma (ICP)
Sulfur Contentmax. 0.01%
Volatile Contentmax. 0.6%
Physical Properties
ValueUnitsTest Method / Conditions
Moisture Contentmax. 0.1%
Particle Size10.0-20.0µmD50
Skeletal Densitymin. 2.1g/cm³
SDS Physical and Chemical Properties
ValueUnitsTest Method / Conditions
Boiling Point (SDS)4205.0°C
Density (SDS)18.7763lb/gal
Melting Point (SDS)2760.0°C
Relative Density (SDS)2.25-
Shelf Life & Stability
ValueUnitsTest Method / Conditions
Shelf Life9999.0d
