Superior Graphite 7002922

7002922 Purified Natural Graphite is a purified flake product manufactured using Superior Graphite’s proprietary electro-thermal purification technology. This continuous high-temperature process exposes the flake graphite to extremely high temperatures so that impurities, including inorganic contaminants, are sublimed. 7002922 Purified Natural Graphite is the medium-coarse size grade of the 'Thermally Purified Flake' product line produced using Superior Graphite’s dedicated milling and screening technology. Main uses are increase in thermal and electrical conductivity, coefficient of friction reduction, and low gas diffusion property enhancement in high demanding applications.

Principal: Superior Graphite

Chemical Name: Graphite

Chemical Family: Carbon & Carbon-based Compounds

Applicable Processes: Oilfield Applications

Features: Defined Texture, High Purity, High Thermal Conductivity, Increases Electrical Conductivity, Low Gas Diffusion Enhancement, Well-Defined Particle Size Distribution

Safety Data SheetTechnical Data Sheet
View All Documents

Enhanced TDS

Identification & Functionality

Blend
No
Chemical Family
Carbon & Carbon-based Compounds
Chemical Name
Graphite
Product Code
MITM14216
Single Ingredient
Yes
Technologies
Industrial Additives & Materials,
Base Chemicals & Intermediates,
CASE,
Fluids & Lubricants
Product Families
Industrial Additives & Materials — Oil, Gas & Mining Chemicals
Oilfield & Transport Chemicals
Base Chemicals & Intermediates — Technical Salts & Inorganics
Inorganics
CASE — Additives
Other Additives
Fluids & Lubricants — Additives
Other Additives

Features & Benefits

Base Chemicals Features
Increases Electrical Conductivity,
High Purity,
Low Gas Diffusion Enhancement,
Well-Defined Particle Size Distribution,
High Thermal Conductivity,
Defined Texture
Product Characteristics
  • High Purity
  • High Crystallinity
  • Defined Texture
  • Well-Defined Particle Size Distribution

Applications & Uses

Applicable Processes
Oilfield Applications
Markets
Industrial
Applications
Industrial — Chemical & Industrial Manufacturing
Fluids & Lubricants

Properties

Physical Form
Solid,
Powder

Regulatory & Compliance

Certifications & Compliance
RoHS Compliant

Technical Details & Test Data

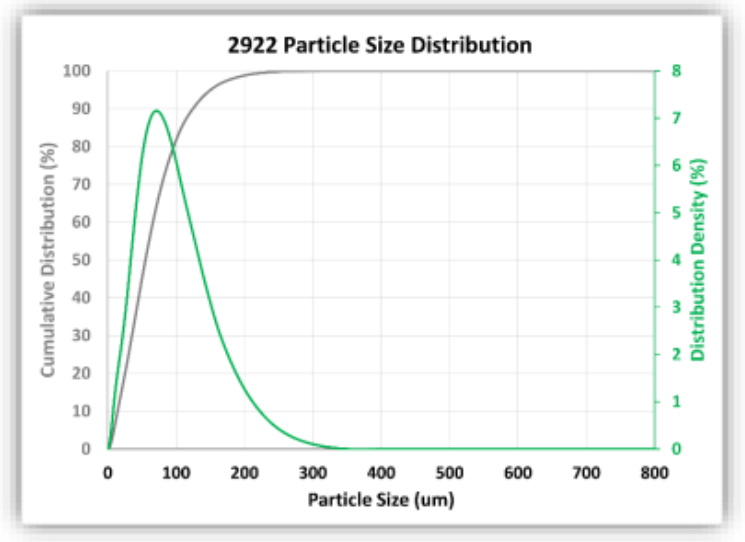

Particle Size Distribution Graph

7002922 Purified Natural Graphite

Packaging & Availability

Packaging Type
Bags
Packaging Information

Standard Packaging:

50 lbs bags 50 bags/pallet

Other

Appearance (SDS)
Silver grey to black solid
Ash Content
max. 0.1 %
Carbon Content
min. 99.9 %
Flammable Nature (SDS)
Not flammable
Iron Content
max. 150.0 ppm
Item Number
ITM22350
Melting Point (SDS)
2760.0 °C
Moisture Content
max. 0.5 %
Odor (SDS)
Odorless
Other Hazards
None
Particle Size
55.0-65.0 µm
Principal
Superior Graphite
Relative Density (SDS)
2.25
Chemical Properties
ValueUnitsTest Method / Conditions
Ash Contentmax. 0.1 %%
Physical Properties
ValueUnitsTest Method / Conditions
Moisture Contentmax. 0.5 %%
Particle Size55.0-65.0 µmµmD50
Material Composition
ValueUnitsTest Method / Conditions
Carbon Contentmin. 99.9 %%
Iron Contentmax. 150.0 ppmppmInductively Coupled Plasma (ICP)
SDS Physical and Chemical Properties
ValueUnitsTest Method / Conditions
Melting Point (SDS)2760.0 °C°C
Relative Density (SDS)2.25-Water = 1
