Enhanced TDS
Identification & Functionality
- Blend
- No
- Chemical Family
- Chemical Name
- Fluids & Lubricants Functions
- Function
- Conductive Agent, Friction Reducer, Loss Circulation Material
- Industrial Additives Functions
- Product Code
- MITM14220
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- Base Chemicals Features
- Product Characteristics
- High Purity
- High Lubricity
- High Crystallinity
- Consistent Sizing
Applications & Uses
- Applicable Processes
- Base Chemicals End Uses
- Markets
- Applications
Properties
- Physical Form
Regulatory & Compliance
- Certifications & Compliance
Technical Details & Test Data

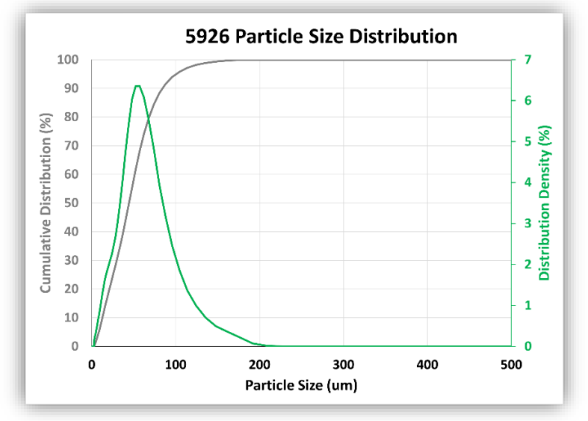

- Cumulative Distribution vs Particle Size Graph
Packaging & Availability
- Packaging Type
- Packaging Information
50 lbs bags 50 bags/pallet 22.68 kg bags 50 bags/pallet
Other
- Ash Content
- max. 0.5 %
- Boiling Point (SDS)
- 4205.0 °C
- Carbon Content
- min. 99.5 %
- Color (SDS)
- Silver./ gray.To black.
- Density (SDS)
- 18.7763 lb/gal
- Elastic Recovery
- 20.0-45.0 %
- Immiscible In (SDS)
- Water
- Insoluble in (SDS)
- Hot Water
- Item Number
- Melting Point (SDS)
- 2760.0 °C
- Moisture Content
- max. 0.5 %
- Odor (SDS)
- Odorless
- Other Hazards
- None known.
- Particle Size
- 30.0-50.0 µm
- Principal
- Relative Density (SDS)
- 2.25
- Skeletal Density
- min. 2.2 g/cm³
- Specific Surface Area
- min. 3.5 m²/g
- Sulfur Content
- max. 0.2 %
- Chemical Properties
Value Units Test Method / Conditions Ash Content max. 0.5 % % - Mechanical Properties
Value Units Test Method / Conditions Elastic Recovery 20.0-45.0 % % - Physical Properties
Value Units Test Method / Conditions Moisture Content max. 0.5 % % Particle Size 30.0-50.0 µm µm D50 Skeletal Density min. 2.2 g/cm³ g/cm³ Specific Surface Area min. 3.5 m²/g m²/g - Material Composition
Value Units Test Method / Conditions Carbon Content min. 99.5 % % Sulfur Content max. 0.2 % % - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Boiling Point (SDS) 4205.0 °C °C Density (SDS) 18.7763 lb/gal lb/gal Melting Point (SDS) 2760.0 °C °C Relative Density (SDS) 2.25 -
