Enhanced TDS
Identification & Functionality
- CASE Ingredients Functions
- Chemical Family
- Dye Type
- Function
- Dye
- Product Code
- MITM14402
- Technologies
- Product Families
Features & Benefits
- CASE Ingredients Features
- Labeling Claims
- Key Features
- Highly purified, low salt black dye mixture
- Very good filtration properties (0.45 μm)
- High color strength at an economical price
Applications & Uses
- Ink & Toner End Applications
- Markets
- Applications
- Product Applications
- Water-based inks
- Thermal and piezo ink-jet printing
- Office supplies
- Fine liner inks, fountain-pen inks
- Writing instruments
- Especially suitable for industrial ink-jet printing & barcoding
Properties
Regulatory & Compliance
- Certifications & Compliance
- Chemical Inventories
- Contains any chemicals listed on Prop 65 (including impurities, residues, catalysts, monomers, and by-products and excluding heavy metals)?
Technical Details & Test Data

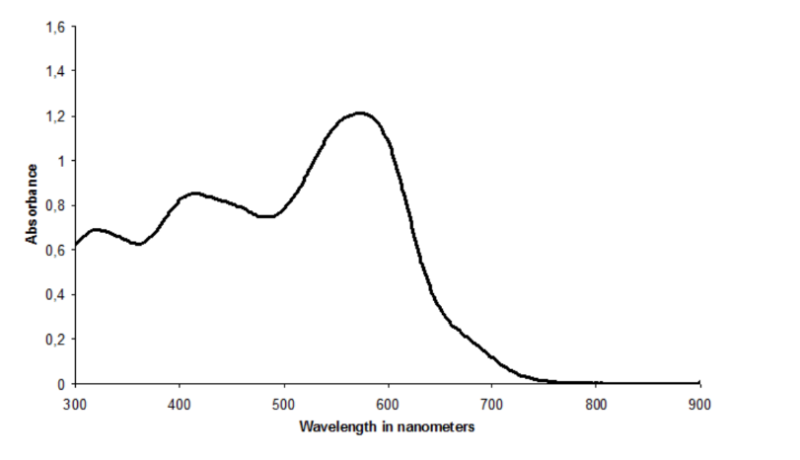

- Absorbance Curve
Black SP liq. in water
Packaging & Availability
- Packaging Type
Principal Information
- Group Principal Number
- S000008
- Principal
Other
- Appearance
- Black liquid
- Color (SDS)
- Black
- Item Number
- Odor (SDS)
- Odorless
- Other Hazards
- None known
- USA/DOT UN Number
- Not Applicable
- Optical Properties
Value Units Test Method / Conditions Color Intensity -5.0-5.0 % % - Chemical Properties
Value Units Test Method / Conditions Dye Content 30.0 % % pH 8.0-9.0 - Form supplied - Shelf Life & Stability
Value Units Test Method / Conditions Light Fastness 3.0 - Shelf Life 24.0 mo mo - Physical Properties
Value Units Test Method / Conditions Filter Residue max. 0.01 % % residue on 0.45 μm filter Surface Tension min. 50.0 mN/m mN/m Viscosity max. 10.0 mPa.s mPa.s - Material Composition
Value Units Test Method / Conditions Calcium Content max. 40.0 ppm ppm Chloride Content max. 1000.0 ppm ppm Copper Content max. 20.0 ppm ppm Iron Content max. 20.0 ppm ppm Magnesium Content max. 20.0 ppm ppm Silicon Content max. 30.0 ppm ppm Sulfate Content max. 3000.0 ppm ppm - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Boiling Point (SDS) 212.0 °F °F at 1 mmHg, room temperature Density (SDS) 1.05-1.15 g/cm³ g/cm³ at 20°C Flash Point (SDS) min. 212.0 °F °F Closed Cup Ignition Temperature (SDS) min. 932.0 °F °F Melting Point (SDS) min. 27.0 °F °F Vapor Pressure (SDS) 30.0 hPa hPa At 20°C Vapor Pressure (SDS) 140.0 hPa hPa At 50°C Vapor Pressure (SDS) 183.0 hPa hPa at 55°C Viscosity (SDS) max. 50.0 mPa.s mPa.s At 20°C pH (SDS) 8.0-9.0 -
