Enhanced TDS
Identification & Functionality
- Blend
- No
- CASE Ingredients Functions
- CI Name
- Chemical Family
- Dye Type
- Function
- Dye
- Product Code
- MITM14405
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- CASE Ingredients Features
- Key Features
- Water-based inks
- High quality thermal and piezo ink-jet printing
- Photographic printing
- Excellent match for red shade magenta photo inks
Applications & Uses
- Compatible Substrates & Surfaces
- Ink & Toner End Applications
- Markets
- Applications
- Product Applications
- Water-based inks
- High quality thermal and piezo ink-jet printing
- Photographic printing
- Excellent match for red shade magenta photo inks
Properties
Technical Details & Test Data

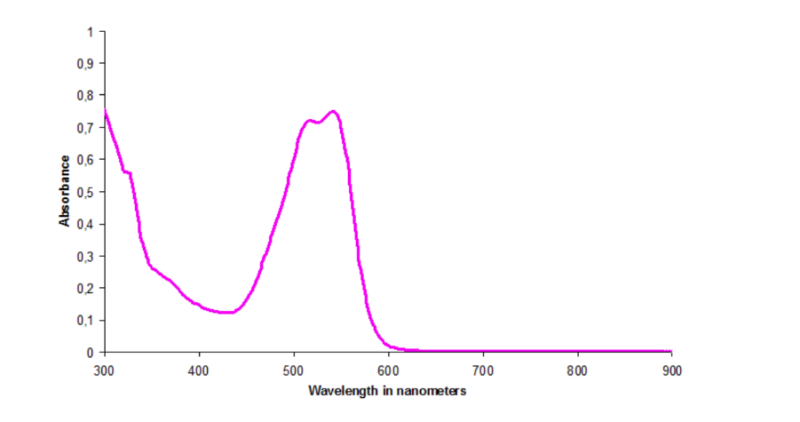

- Absorbance Curve
Packaging & Availability
- Packaging Type
Principal Information
- Group Principal Number
- S000008
- Principal
Storage & Handling
- Storage Conditions
Protect from strong alkaline conditions, especially in combination with heat.
Other
- Appearance
- Red liquid
- Appearance (SDS)
- Liquid
- Color (SDS)
- Red
- IATA/ICAO Proper Shipping Name
- Corrosive liquid, N.O.S. (C.I. reactive red 141)
- IATA/ICAO UN Number
- UN1760
- IMO/IMDG EmS Fire
- F-A
- IMO/IMDG EmS Spill
- S-B
- IMO/IMDG Proper Shipping Name
- Corrosive liquid, N.O.S. (C.I. reactive red 141)
- IMO/IMDG UN Number
- UN1760
- Item Number
- Odor (SDS)
- Odorless
- Other Hazards
- None known
- USA/DOT Emergency Response Guide Number
- 154
- USA/DOT Proper Shipping Name
- Corrosive liquids, N.O.S. (C.I. reactive red 141)
- USA/DOT UN Number
- UN1760
- Optical Properties
Value Units Test Method / Conditions Color Intensity -5.0-5.0 % % - Chemical Properties
Value Units Test Method / Conditions Dye Content 13.0 % % pH 4.0-8.0 - Form supplied - Shelf Life & Stability
Value Units Test Method / Conditions Light Fastness 3.0 - Shelf Life 12.0 mo mo - Physical Properties
Value Units Test Method / Conditions Filter Residue max. 0.01 % % residue on 0.45 μm filter Surface Tension min. 50.0 mN/m mN/m Viscosity max. 10.0 mPa.s mPa.s - Material Composition
Value Units Test Method / Conditions Calcium Content max. 50.0 ppm ppm Chloride Content max. 500.0 ppm ppm Magnesium Content max. 10.0 ppm ppm Sulfate Content max. 50.0 ppm ppm - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Boiling Point (SDS) 100.0 °C °C at 1 mmHg, room temperature Density (SDS) 1.0-1.1 g/cm³ g/cm³ at 68°F Flash Point (SDS) min. 100.0 °C °C Closed Cup Viscosity (SDS) max. 10.0 mPa.s mPa.s at 20°C, Dynamic Viscosity (SDS) max. 10.0 mPa.s mPa.s At 68°F pH (SDS) 5.5-8.5 -
