Enhanced TDS
Identification & Functionality
- Blend
- No
- CI Name
- CI Number
- Chemical Family
- Dye Type
- Function
- Dye
- Plastics & Elastomers Functions
- Product Code
- MITM14417
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- Labeling Claims
Applications & Uses
- Compatible Polymers & Resins
- Plastics & Elastomers End Uses
- Product Applications
Transparent and opaque dyeing of PS, SAN, PMMA, PC, PET, ABS and ABS / PC blends.
Properties
- Color (Properties)
- Physical Form
Regulatory & Compliance
- Certifications & Compliance
Technical Details & Test Data
- Technical Data
Fastness to bleeding:
- (Suitability for dyeing household utensils) No staining of distilled water, 2% by weight acetic acid, 10% by volume ethanol, coconut oil or peanut oil in our test on 0.1% dyeing of PS, ABS, SAN, PMMA, PC, PET and PVC-U. The tests were carried out in accordance with the recommendations of the German BfR [for plastic applications (saturated strips of filter paper, 5h at 50°C)].

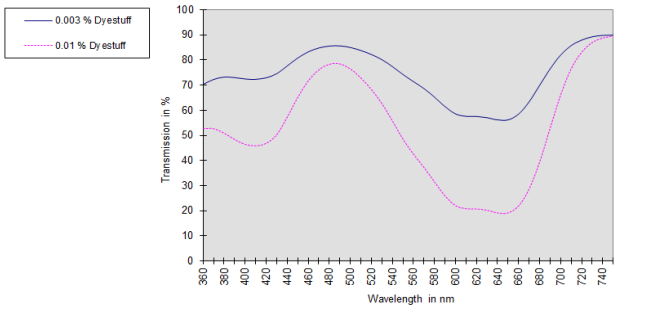

Transmission curve MACROLEX Green 5B Gran in GP-PS (2mm thickness)
Purity:
- This dyestuff meets current purity requirements for dyeing household utensils and toys in Europe.

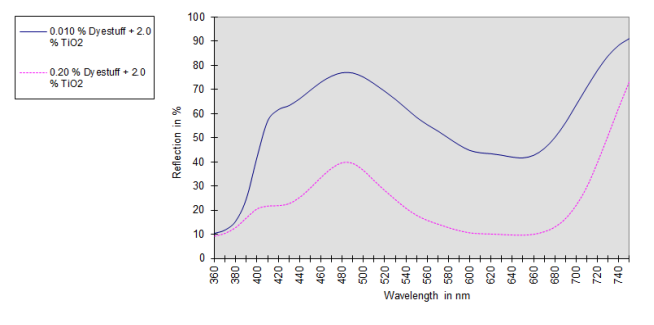

Reflection curve MACROLEX Green 5B Gran in GP-PS
Packaging & Availability
- Packaging Type
Other
- Acetone Content
- 3.5 g/L
- Appearance
- Green with a blue cast microgranulate
- Appearance (SDS)
- Powder
- Benzyl Alcohol Content
- 3.0 g/L
- Bulk Density
- 0.45 g/cm³
- Bulk Density (SDS)
- 170.0-290.0 kg/m³
- Color (SDS)
- Green
- Density
- 1.35 g/cm³
- Density (SDS)
- 1.35 g/cm³
- Dye Content
- 0.105 %
- Dye Content
- 0.105 %
- Dye Content
- 0.2 %
- Ethanol Content
- 4.5 g/L
- Item Number
- Light Fastness
- 7.0-8.0
- Light Fastness
- 7.0-8.0
- Light Fastness
- 6.0
- Light Fastness
- 6.0
- Light Fastness
- 7.0-8.0
- Light Fastness
- 5.0-6.0
- Light Fastness
- 7.0-8.0
- Light Fastness
- 7.0-8.0
- Light Fastness
- 6.0
- Light Fastness
- 6.0
- Light Fastness
- 7.0-8.0
- Light Fastness
- 5.0-6.0
- Melting Point
- 213.0 °C
- Melting Point (SDS)
- 415.0 °F
- Odor (SDS)
- Odorless
- Other Hazards
- May form explosible dust-air mixture if dispersed., Handling and/or processing of this material may generate a dust which can cause mechanical irritation of the eyes, skin, nose and throat.
- Principal
- Shelf Life
- 60.0 mo
- Solubility In Water (SDS)
- 0.0014 mg/L
- Solubility in Butyl Acetate
- 0.1 g/L
- Solubility in Methyl Methacrylate
- 20.0 g/L
- Solubility in Methylene Chloride
- 12.0 g/L
- Thermal Resistance
- 280.0 °C
- Thermal Resistance
- 260.0 °C
- Thermal Resistance
- 280.0 °C
- Thermal Resistance
- 350.0 °C
- Thermal Resistance
- 290.0 °C
- Thermal Resistance
- 300.0 °C
- Thermal Resistance
- 280.0 °C
- Thermal Resistance
- 300.0 °C
- Thermal Resistance
- 300.0 °C
- Thermal Resistance
- 280.0 °C
- Thermal Properties
Value Units Test Method / Conditions Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PA 6 Thermal Resistance 260.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PA 6.6 Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PBT Thermal Resistance 350.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PC Thermal Resistance 290.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PET Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, PMMA Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, SAN Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 1% titanium dioxide, SB Thermal Resistance 300.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 2% titanium dioxide, PS Thermal Resistance 280.0 °C °C DIN EN 12877 at 1/3 Standard depth, with 4% titanium dioxide, ABS - Chemical Properties
Value Units Test Method / Conditions Dye Content 0.105 % % DIN EN ISO 4892-2 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye; evaluated with 8-step blue wool scale, PMMA Dye Content 0.105 % % DIN EN ISO 4892-2 PC, 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye; evaluated with 8-step blue wool scale Dye Content 0.2 % % DIN EN ISO 4892-2 PS, 1/3 standard depth with 1% titanium dioxide (PS 2% titanium dioxide), transparent coloration with 0.05% dye; evaluated with 8-step blue wool scale - Shelf Life & Stability
Value Units Test Method / Conditions Light Fastness 7.0-8.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.105%, PC, Transparent Light Fastness 7.0-8.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.105%, PMMA, Transparent Light Fastness 6.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.105%, with 1% titanium dioxide, PC, Reduction Light Fastness 6.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.105%, with 1% titanium dioxide, PMMA, Reduction Light Fastness 7.0-8.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.2%, PS, Transparent Light Fastness 5.0-6.0 - Blue Wool Scale (BWS) at 1/3 Standard depth, dye content 0.2%, with 2% titanium dioxide, PS, Reduction Light Fastness 7.0-8.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.105%, PC, Transparent Light Fastness 7.0-8.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.105%, PMMA, Transparent Light Fastness 6.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.105%, with 1% titanium dioxide, PC, Reduction Light Fastness 6.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.105%, with 1% titanium dioxide, PMMA, Reduction Light Fastness 7.0-8.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.2%, PS, Transparent Light Fastness 5.0-6.0 - DIN EN ISO 4892-2 at 1/3 Standard depth, dye content 0.2%, with 2% titanium dioxide, PS, Reduction Shelf Life 60.0 mo mo - Physical Properties
Value Units Test Method / Conditions Bulk Density 0.45 g/cm³ g/cm³ DIN EN ISO 787-11 Density 1.35 g/cm³ g/cm³ at 23°C Melting Point 213.0 °C °C Solubility in Butyl Acetate 0.1 g/L g/L at 23°C Solubility in Methyl Methacrylate 20.0 g/L g/L At 23°C Solubility in Methylene Chloride 12.0 g/L g/L At 23°C - Material Composition
Value Units Test Method / Conditions Acetone Content 3.5 g/L g/L At 23°C Benzyl Alcohol Content 3.0 g/L g/L At 23°C Ethanol Content 4.5 g/L g/L At 23°C - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Bulk Density (SDS) 170.0-290.0 kg/m³ kg/m³ Density (SDS) 1.35 g/cm³ g/cm³ at 68°F Melting Point (SDS) 415.0 °F °F Solubility In Water (SDS) 0.0014 mg/L mg/L Regulation (EC) No. 440/2008, Annex, A.6 at 68°F, pH: 7
