Enhanced TDS
Identification & Functionality
- Chemical Family
- Chemical Name
- Country of Origin
- Function
- Filler
- Product Code
- MITM15911
- Product Functions
- Technologies
- Product Families
Features & Benefits
- Labeling Claims
- Product Features
- Soft bulk agglomerates of crystalline BN platelets with mean particle size 50–80 µm
- Best fit for potting resins and conformable TIM foils or pads with thin bond line 150–200 µm
Applications & Uses
- Product Applications
3M™ Boron Nitride Cooling Fillers CFA 100 has highest through-plane conductivities in TIM parts.
Regulatory & Compliance
- Compliance (Industry Standards)
- Compliance (Regulatory)
- Manufacturing Facility Standards
Technical Details & Test Data
- Technical Data

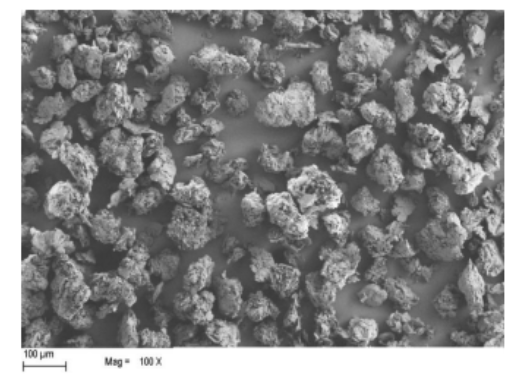

SEM Micrograph

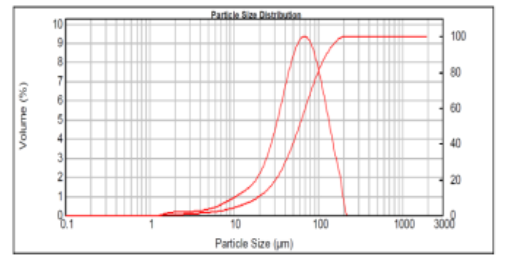

- Graph of Particle Size Distribution
Particle size distribution measured by laser light scattering
(Mastersizer 2000, dry, 0.1 bar)
Principal Information
- Group Principal Number
- S002409
- Principal
Other
- Color (SDS)
- White
- Item Number
- Odor (SDS)
- Odorless
- Other Hazards
- May cause thermal burns
- Physical Form
- Processing & Application Methods
- Protect from Freezing
- No
- Temperature Control
- No
- USA/DOT UN Number
- Not Applicable
- Chemical Properties
Value Units Test Method / Conditions Active Oxygen Content max. 0.7 % - Material Composition
Value Units Test Method / Conditions Carbon Content max. 0.2 % - Physical Properties
Value Units Test Method / Conditions Bulk Density 0.25-0.4 g/cm³ DIN Method Untapped Particle Size 10.0-35.0 µm d(0.1), mastersizer 2000, dispersion in ethanol Particle Size 50.0-80.0 µm Laser Light Scattering D(0.5) Particle Size 95.0-145.0 µm Laser Light Scattering D90 Specific Surface Area max. 3.0 m²/g - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Bulk Density (SDS) 50.0-550.0 kg/m³ Decomposition Temperature (SDS) 2730.0 °C Density (SDS) 2.25 g/cm³ at 20°C - Shelf Life & Stability
Value Units Test Method / Conditions Shelf Life 2190.0 d
