EBECRYL® CTFA

EBECRYL® CTFA is a mono-functional monomer with low viscosity, good hardness and good hard solvent resistance. It can provide fast curing speed and good film performance.

Principal: allnex Radcure

Chemical Name: Cyclic Trimethylolpropane Formal Acrylate

Chemical Family: Acrylics & Acrylates

End Uses: Plastic Coating, Surface Coating, Vacuum Metallization (VM) Coatings

View All Documents

Enhanced TDS

Identification & Functionality

Blend
No
CASE Ingredients Functions
Chemical Family
Chemical Name
Function
Monomer
Product Code
MITM12722
Single Ingredient
Yes
Technologies
Product Families

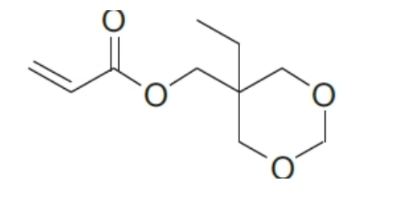

Chemical Structure

EBECRYL® CTFA

Features & Benefits

CASE Ingredients Features
Performance Highlights
  • Low viscosity
  • Good hardness
  • Fast curing speed
  • Good solvent resistance

Applications & Uses

Coating End Applications
Cure Method
Product Applications
  • UV plastic coating
  • UV VM coating

Properties

Physical Form

Regulatory & Compliance

Certifications & Compliance
Contains any chemicals listed on Prop 65 (including impurities, residues, catalysts, monomers, and by-products and excluding heavy metals)?

Packaging & Availability

Packaging Type

Principal Information

Group Principal Number
S000001
Principal

Storage & Handling

Storage Conditions

Protect from direct sun rays and heat sources; the shelf life under normal condition is 12 months maximum.

Other

Appearance
Clear liquid
Appearance (SDS)
Clear liquid
Color (SDS)
Colorless to light yellow
IATA/ICAO Proper Shipping Name
Environmentally hazardous substance, liquid, N.O.S.
IATA/ICAO Technical name (N.O.S.)
Trimethylolpropane formalacrylate
IATA/ICAO UN Number
UN3082
IMO/IMDG Proper Shipping Name
Environmentally hazardous substance, liquid, N.O.S.
IMO/IMDG Technical name (N.O.S.)
Trimethylolpropane formalacrylate
IMO/IMDG UN Number
UN3082
Item Number
Odor (SDS)
Acrylic monomers
Other Hazards
Polymerization may occur from excessive heat, contamination or exposure to direct sunlight .
TDG Canada Proper Shipping Name
Environmentally hazardous substance, liquid, N.O.S.
TDG Canada Technical name (N.O.S.)
Trimethylolpropane formalacrylate
TDG Canada UN Number
UN3082
USA/DOT Proper Shipping Name
Environmentally hazardous substance, liquid, N.O.S.
USA/DOT Technical name (N.O.S.)
Trimethylolpropane formalacrylate
USA/DOT UN Number
UN3082
Optical Properties
ValueUnitsTest Method / Conditions
Color Scalemax. 100.0APHA
Chemical Properties
ValueUnitsTest Method / Conditions
Acid Valuemax. 0.5mg KOH/g
Methoxyhydroquinone Content100.0-300.0ppmMEHQ
Shelf Life & Stability
ValueUnitsTest Method / Conditions
Shelf Life12.0mo
Mechanical Properties
ValueUnitsTest Method / Conditions
Elongation94.0%at Break
Tensile Modulus3800.0psi
Tensile Strength1000.0psi
Physical Properties
ValueUnitsTest Method / Conditions
Glass Transition Temperature (Tg)28.0°C
Moisture Contentmax. 2.0%
Specific Gravity1.08-1.11-at 25°C
Viscosity12.0-18.0mPa.sAt 25°C
SDS Physical and Chemical Properties
ValueUnitsTest Method / Conditions
Density (SDS)1.08-1.11g/cm³
Flash Point (SDS)min. 120.0°C
Melting Point (SDS)max. -28.0°C
Partition coefficient n-octanol/water (SDS)1.9-at 20°C, n-octanol/water
Solubility In Water (SDS)9300.0mg/Lat 20°C
Viscosity (SDS)12.0-18.0mPa.sat 25°C
Volatile Content (SDS)max. 0.2%(W/W)
