PEBAX® MV 1074 SP 01

PEBAX® MV 1074 SP 01 resin is a thermoplastic elastomer made of flexible polyether and rigid polyamide. Pebax® MV 1074 SP 01 resin is an inherently dissipative polymer and can be dry blended or compounded with an isolative polymer to lower the surface resistivity. This hydrophilic grade when extruded into either a thin film or laminated on to a substrate offers excellent permeability to moisture vapor while remaining waterproof. This SP grade has been developed to be heat and UV resistant.

Principal: Arkema High Performance Polymers

Polymer Name: Polyether Block Amide (PEBA)

Functions: Anti-Static Agent

Processing Methods: Casting, Extrusion, Film Extrusion, Injection Molding, Profile Extrusion, Thermoforming, Transfer Molding

Chemical Family: Amides, Polyamides, Polyethers

Labeling Claims: Carcinogenic, Mutagenic, or Reproductive Toxic (CMR) Substances-free, Food Allergen-free, Hazardous Air Pollutants (HAPs)-free, Heavy Metal-free, Nanomaterials-free, Nanotechnology-free, Ozone Non Depleting

Enhanced TDS

Identification & Functionality

Additives Included
Blend
Yes
Chemical Family
Country of Origin
Function
Anti-Static Agent
Plastics & Elastomers Functions
Polymer Name
Product Code
MITM01791
Single Ingredient
No
Technologies
Product Families

Features & Benefits

Applications & Uses

Plastics & Elastomers Processing Methods
Processing Information
  • Injection Molding
  • Film Extrusion
  • Profile Extrusion
  • Extrusion
  • Transfer Molding
  • Casting
  • Thermoforming
Processing Information
  • Typical melt temperature (Min / Recommended / Max): 200°C / 240°C / 270°C.
  • Typical mold temperature: 25–60°C.
  • Drying time and temperature (only necessary for bags opened for more than two hours): 4-6 hours at 65-75°C.

Properties

Technical Details & Test Data

Technical Data

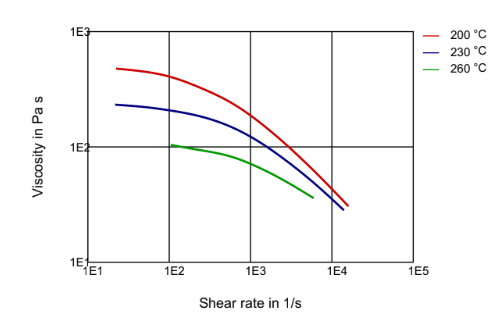

Viscosity-shear Rate

PEBAX® MV 1074 SP 01 - Technical Data - 1

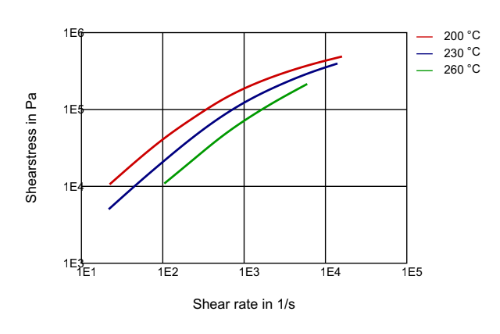

Shearstress-shear Rate

PEBAX® MV 1074 SP 01 - Technical Data - 1

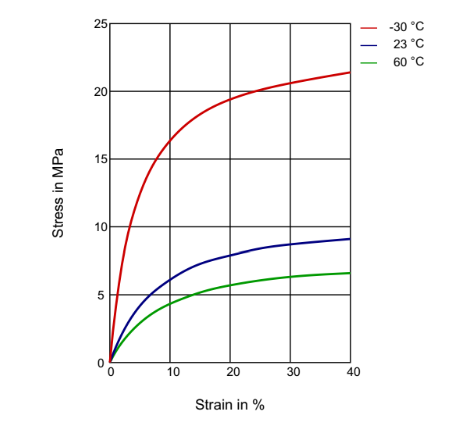

Stress-strain

PEBAX® MV 1074 SP 01 - Technical Data - 1

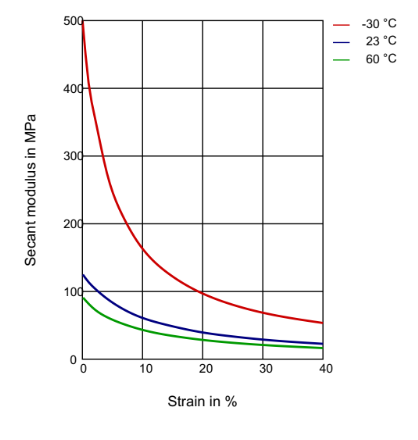

Secant Modulus-strain

PEBAX® MV 1074 SP 01 - Technical Data - 1

Packaging & Availability

Packaging Type

Principal Information

Group Principal Number
S000003
Principal

Other

Color (SDS)
Colorless to slightly yellow
Insoluble in (SDS)
Water
Item Number
Other Hazards
Processing may release vapors and/or fumes which cause eye, skin and respiratory tract irritation, Prolonged or repeated exposure may cause: headache, drowsiness, nausea, weakness, (severity of effects depends on extent of exposure).
USA/DOT UN Number
Not Applicable
Shelf Life & Stability
ValueUnitsTest Method / Conditions
Shelf Life2.0 yryr
Electrical Properties
ValueUnitsTest Method / Conditions
Dielectric Strength5.0 kV/mmkV/mmIEC 60243-1 dry basis
Surface Resistance3000000000.0 ΩΩIEC 60093 condensed
Volume Resistivity25000000.0 Ω-cmΩ-cmIEC 60093 condensed
Volume Resistivity1500000000.0 Ω-cmΩ-cmIEC 60093 dry basis
Mechanical Properties
ValueUnitsTest Method / Conditions
Hardness40.0 Shore AShore AISO 868
Strainmax. 700.0 %%ISO 527 normal, dry
Strainmax. 500.0 %%ISO 527 parallel, dry
Strain at Breakmin. 50.0 %%ISO 527-1 Dry, at break
Strain at Breakmin. 300.0 %%ISO 527-1 dry, thermoplastic elastomer, at break
Strain at Breakmin. 50.0 %%ISO 527-2 at break, condensed
Stress10.0 MPaMPaISO 527-1 dry, at 50% strain
Stress10.0 MPaMPaISO 527-2 condensed, at 50% strain
Stressmax. 34.0 MPaMPaISO 527 normal, dry
Stressmax. 32.0 MPaMPaISO 527 parallel, dry
Stress at Break30.0 MPaMPaISO 527-1 dry, thermoplastic elastomer, at break
Tensile Modulus97.0 MPaMPaISO 527-1 dry basis
Tensile Modulus80.0 MPaMPaISO 527-2 condensed
Physical Properties
ValueUnitsTest Method / Conditions
Density1070.0 kg/m³kg/m³ISO 1183 dry basis
Glass Transition Temperature (Tg)-40.0 °C°CISO 11357-1 at 10°C/min, dry
Humidity Absorption1.4 %%ISO 62
Melting Point158.0 °C°CISO 11357-1 at 10°C/min
Storage Temperaturemax. 140.0 °F°F
Water Absorption48.0 %%ISO 62 dry basis
SDS Physical and Chemical Properties
ValueUnitsTest Method / Conditions
Autoignition Temperature (SDS)788.0-842.0 °F°F
Decomposition Temperature (SDS)300.0-350.0 °C°C
Melting Point (SDS)158.0-172.0 °C°C
