Enhanced TDS
Identification & Functionality
- Additives Included
- Blend
- Yes
- Chemical Family
- Plastics & Elastomers Functions
- Polymer Name
- Product Code
- MITM14863
- Single Ingredient
- No
- Technologies
- Product Families
Features & Benefits
- Labeling Claims
- Materials Features
Applications & Uses
- Plastics & Elastomers End Uses
- Plastics & Elastomers Processing Methods
- Markets
- Applications
Properties
Technical Details & Test Data
- Test Data

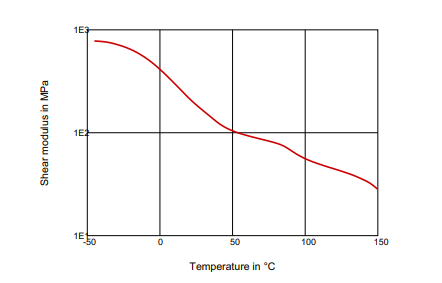

Dynamic Shear Modulus-Temperature

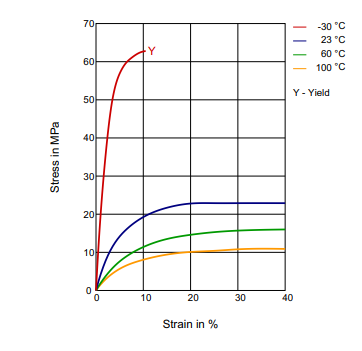

Stress- Strain
Packaging & Availability
- Packaging Type
- Packing Information
Rilsamid® AESNO P40 TL is delivered dried in sealed packaging (25 kg bags) ready to be processed.
Other
- Autoignition Temperature (SDS)
- 788.0-842.0 °F
- Bulk Density (SDS)
- 550.0-650.0 kg/m³
- Charpy Impact Strength
- 5.0 kJ/m²
- Coefficient of Thermal Expansion
- 140.0 /K
- Coefficient of Thermal Expansion
- 140.0 /K
- Color (SDS)
- Colorless
- Comparative Tracking Index
- 600.0
- Decomposition Temperature (SDS)
- min. 662.0 °F
- Density
- 1030.0 kg/m³
- Density
- 1030.0 kg/m³
- Density (SDS)
- 1.03 g/cm³
- Dielectric Strength
- 24.0 kV/mm
- Insoluble in (SDS)
- Water
- Item Number
- Load/Unload Temperature
- 90.0 °C
- Load/Unload Temperature
- 46.0 °C
- Load/Unload Temperature
- 90.0 °C
- Load/Unload Temperature
- 46.0 °C
- Melt Volume-Flow Rate
- 16.0 cc/10min
- Melting Point
- 174.0 °C
- Melting Point
- 174.0 °C
- Melting Point (SDS)
- 347.0 °F
- Nominal Strain at Break
- min. 50.0 %
- Nominal Strain at Break
- min. 50.0 %
- Other Hazards
- Processing may release vapors and/or fumes which cause eye, skin and respiratory tract irritation., Prolonged or repeated exposure may cause: headache, drowsiness, nausea, weakness, (severity of effects depends on extent of exposure).
- Principal
- Puncture Energy
- 60.0 J
- Puncture Force
- 5600.0 N
- Shelf Life
- 2.0 yr
- Softening Point
- 130.0 °C
- Strain at Yield
- 26.0 %
- Strain at Yield
- 24.0 %
- Strain at Yield
- 26.0 %
- Strain at Yield
- 24.0 %
- Stress at Yield
- 23.0 MPa
- Stress at Yield
- 26.0 MPa
- Stress at Yield
- 23.0 MPa
- Stress at Yield
- 26.0 MPa
- Tensile Modulus
- 380.0 MPa
- Tensile Modulus
- 430.0 MPa
- Tensile Modulus
- 380.0 MPa
- Tensile Modulus
- 430.0 MPa
- Water Absorption
- 1.2 %
- Thermal Properties
Value Units Test Method / Conditions Coefficient of Thermal Expansion 140.0 /K /K ISO 11359-1 parallel, dry Coefficient of Thermal Expansion 140.0 /K /K ISO 11359-2 parallel, dry - Shelf Life & Stability
Value Units Test Method / Conditions Shelf Life 2.0 yr yr - Electrical Properties
Value Units Test Method / Conditions Comparative Tracking Index 600.0 - IEC 60112 condensed Dielectric Strength 24.0 kV/mm kV/mm IEC 60243-1 condensed - Mechanical Properties
Value Units Test Method / Conditions Charpy Impact Strength 5.0 kJ/m² kJ/m² ISO 179-1EA at -30°C, condensed, notched Nominal Strain at Break min. 50.0 % % condensed Nominal Strain at Break min. 50.0 % % dry Puncture Energy 60.0 J J ISO 6603-2 at -30°C, condensed Puncture Force 5600.0 N N ISO 6603-2 at -30°C, condensed Strain at Yield 26.0 % % ISO 527-1 condensed Strain at Yield 24.0 % % ISO 527-1 Dry Strain at Yield 26.0 % % ISO 527-2 condensed Strain at Yield 24.0 % % ISO 527-2 Dry Stress at Yield 23.0 MPa MPa ISO 527-1 condensed Stress at Yield 26.0 MPa MPa ISO 527-1 dry Stress at Yield 23.0 MPa MPa ISO 5272 condensed Stress at Yield 26.0 MPa MPa ISO 5272 dry Tensile Modulus 380.0 MPa MPa ISO 527-1 condensed Tensile Modulus 430.0 MPa MPa ISO 527-1 Dry Tensile Modulus 380.0 MPa MPa ISO 527-2 condensed Tensile Modulus 430.0 MPa MPa ISO 527-2 Dry - Physical Properties
Value Units Test Method / Conditions Density 1030.0 kg/m³ kg/m³ ISO 1183 condensed Density 1030.0 kg/m³ kg/m³ ISO 1183 Dry Load/Unload Temperature 90.0 °C °C ISO 75-1 at 0.45 MPa Load/Unload Temperature 46.0 °C °C ISO 75-1 at 1.80MPa, dry Load/Unload Temperature 90.0 °C °C ISO 75-2 at 0.45 MPa Load/Unload Temperature 46.0 °C °C ISO 75-2 at 1.80MPa, dry Melt Volume-Flow Rate 16.0 cc/10min cc/10min ISO 1133 at 235°C, 5 kg load Melting Point 174.0 °C °C ISO 11357-3 at 10°C/min Melting Point 174.0 °C °C ISO 11357-1 at 10°C/min Softening Point 130.0 °C °C ISO 306 at 50°C/h, 50N, dry Water Absorption 1.2 % % ISO 62 Dry - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Autoignition Temperature (SDS) 788.0-842.0 °F °F ASTM D1929 Bulk Density (SDS) 550.0-650.0 kg/m³ kg/m³ Decomposition Temperature (SDS) min. 662.0 °F °F Density (SDS) 1.03 g/cm³ g/cm³ Melting Point (SDS) 347.0 °F °F
