Superior Graphite 7002924

Superior Graphite 2924 is a purified flake product manufactured using Superior Graphite’s proprietary electro-thermal purification technology. This continuous high-temperature process exposes the flake graphite to extremely high temperatures so that impurities, including inorganic contaminants, are sublimed. Superior Graphite 2924 is medium-fine size grade of the ‘Thermally Purified Flake’ product line produced using Superior Graphite’s dedicated milling and screening technology. Main uses are increase in thermal and electrical conductivity, coefficient of Friction reduction, wear reduction in high demanding applications.

Principal: Superior Graphite

Functions: Conductive Agent, Friction Modifier, Friction Reducer

Chemical Name: Graphite

Chemical Family: Carbon & Carbon-based Compounds

Labeling Claims: Not Listed In California Proposition 65, Odor-free

Features: Defined Texture, Extremely High Crystallinity, High Purity, Low Gas Diffusion Enhancement, Wear Reduction, Well-Defined Particle Size Distribution

Technical Data Sheet

Enhanced TDS

Identification & Functionality

Features & Benefits

Base Chemicals Features
Labeling Claims
Key Features
  • High purity
  • High crystallinity
  • Defined texture
  • Well-defined particle size distribution

Applications & Uses

Properties

Physical Form

Technical Details & Test Data

Technical Details Information

 - 1

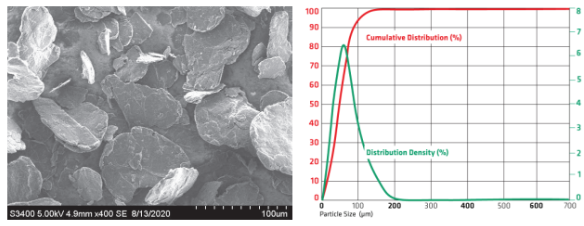

2924 particle size distribution

Packaging & Availability

Packaging Type

Principal Information

Group Principal Number
S002461
Principal

Other

Color (SDS)
Silver / Gray to Black
Insoluble in (SDS)
Cold Water
Item Number
Odor (SDS)
Odorless
Other Hazards
None known
Temperature Control
No
USA/DOT UN Number
Not Applicable
Chemical Properties
ValueUnitsTest Method / Conditions
Ash Contentmax. 0.1 %%
Material Composition
ValueUnitsTest Method / Conditions
Carbon Contentmin. 99.9 %%
Iron Contentmax. 150.0 ppmppm
Physical Properties
ValueUnitsTest Method / Conditions
Moisture Contentmax. 0.5 %%
Particle Size40.0-75.0 µmµmD50
SDS Physical and Chemical Properties
ValueUnitsTest Method / Conditions
Density (SDS)18.7763 lb/gallb/gal
Initial Boiling Point (SDS)4205.0 °C°C
Melting Point (SDS)2760.0 °C°C
Relative Density (SDS)2.25-
Shelf Life & Stability
ValueUnitsTest Method / Conditions
Shelf Life0.0 dd
