Enhanced TDS
Identification & Functionality
- Base Chemicals Functions
- Blend
- No
- Chemical Family
- Chemical Name
- Function
- Filler, Intermediate
- Plastics & Elastomers Functions
- Product Code
- MITM12978
- Single Ingredient
- Yes
- Synonyms
- Elbor
- Technologies
- Product Families
Features & Benefits
Applications & Uses
- Plastics & Elastomers End Uses
- Markets
- Applications
Properties
- Physical Form
Regulatory & Compliance
- Certifications & Compliance
Technical Details & Test Data
- Technical Data

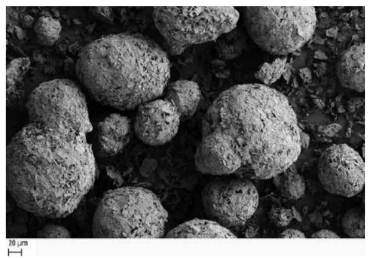

Soft agglomerates for high filler loadings. Excellent processability, flowability and high dosing velocities. Best fit for silicone TIMs.
Packaging & Availability
- Packaging Type
- Product Packaging
3M™ Boron Nitride Cooling Filler Agglomerates 250S are available as 1 kg samples (maximum sample quantity 10 x 1 kg) or in standard drum: 25 kg
Other
- Active Oxygen Content
- max. 10.0 %
- Bulk Density
- 0.3-0.6 g/cm³
- Bulk Density (SDS)
- 50.0-550.0 kg/m³
- Carbon Content
- max. 0.2 %
- Color (SDS)
- White
- Decomposition Temperature (SDS)
- 2730.0 °C
- Density (SDS)
- 2.25 g/cm³
- Item Number
- Odor (SDS)
- Odorless
- Other Hazards
- May cause thermal burns.
- Particle Size
- 40.0-100.0 µm
- Particle Size
- 120.0-210.0 µm
- Particle Size
- 8.0-20.0 µm
- Principal
- Solubility In Water (SDS)
- max. 0.162 mg/L
- Specific Surface Area
- max. 5.0 m²/g
- Chemical Properties
Value Units Test Method / Conditions Active Oxygen Content max. 10.0 % % - Physical Properties
Value Units Test Method / Conditions Bulk Density 0.3-0.6 g/cm³ g/cm³ ISO 23145-2 Particle Size 40.0-100.0 µm µm Laser Light Scattering 0.1 bar, d(0.5), mastersizer 2000, dry Particle Size 120.0-210.0 µm µm Laser Light Scattering 0.1 bar, d(0.9), mastersizer 2000, dry Particle Size 8.0-20.0 µm µm Laser Light Scattering d 0.1, mastersizer 2000, dry, 0.1 bar Specific Surface Area max. 5.0 m²/g m²/g - Material Composition
Value Units Test Method / Conditions Carbon Content max. 0.2 % % - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Bulk Density (SDS) 50.0-550.0 kg/m³ kg/m³ Decomposition Temperature (SDS) 2730.0 °C °C Density (SDS) 2.25 g/cm³ g/cm³ at 20°C Solubility In Water (SDS) max. 0.162 mg/L mg/L
