Enhanced TDS
Identification & Functionality
- Blend
- No
- Chemical Family
- Chemical Name
- Country of Origin
- Function
- Filler, Intermediate
- Product Code
- MITM12961
- Product Functions
- Single Ingredient
- Yes
- Synonyms
- Elbor
- Technologies
- Product Families
Features & Benefits
- Labeling Claims
- Product Features
- Product Benefits
3M™ Technical Ceramics Offers a family of Boron nitride cooling filler materials:
- 3M™ Boron Nitride Cooling Filler Platelets: Powders of highly crystalline single platelets
- 3M™ Boron Nitride Cooling Filler Agglomerates (experimental product): Soft, randomly oriented aggregated platelets
- 3M™ Boron Nitride Cooling Filler Flakes 200-3: (experimental product): Hard, oriented aggregated platelets
- Product Benefits
3M™ Boron Nitride is a versatile ceramic material offering thermal conductivity, temperature stability, chemical resistance, high reflectivity, lightweighting and electrical insulation. The structure of layered hexagonal plates provides outstanding lubricating properties and is non-abrasive to tooling.
- Product Features
- Excellent heat spreading.
- Excellent heat transfer.
- Ideal as secondary filler to boost thermal conductivity.
- Maintains high thermal conductivity under high-shear compounding.
- Optimized through-plane thermal conductivity.
Applications & Uses
- Product End Uses
- Markets
- Applications
- Processing Information
Factors such as melt temperature, compounding technique, injection rate and more can have a significant effect on the thermal and electrical insulative properties of parts made with boron nitride cooling fillers.
Regulatory & Compliance
- Compliance (Industry Standards)
- Compliance (Regulatory)
- Manufacturing Facility Standards
Technical Details & Test Data
- Technical Data

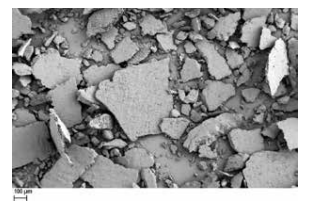

3M™ Boron Nitride Cooling Filler Flakes 200-3
Highest through-plane thermal conductivity. Boosts thermal conductivity of compounds as secondary filler.
Packaging & Availability
- Packaging Type
Principal Information
- Group Principal Number
- S002409
- Principal
Other
- Color (SDS)
- White
- Item Number
- Odor (SDS)
- Odorless
- Physical Form
- Processing & Application Methods
- Protect from Freezing
- No
- Temperature Control
- No
- USA/DOT UN Number
- Not Applicable
- Chemical Properties
Value Units Test Method / Conditions Active Oxygen Content max. 0.7 % - Material Composition
Value Units Test Method / Conditions Boron Nitride Content min. 98.5 % Boron Trioxide Content max. 0.1 % Carbon Content max. 0.2 % - Physical Properties
Value Units Test Method / Conditions Bulk Density 0.3-0.6 g/cm³ DIN Method Bulk Density 0.3-0.6 g/cm³ ISO 23145-2 Particle Size 140.0-240.0 µm Laser Light Scattering 0.1 bar, d(0.5), mastersizer 2000, dry Particle Size 5.0-120.0 µm Laser Light Scattering d 0.1, mastersizer 2000, dry, 0.1 bar Particle Size max. 450.0 µm Laser Light Scattering d 0.97, mastersizer 2000, dry, 0.1 bar Specific Surface Area max. 10.0 m²/g - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Bulk Density (SDS) 50.0-550.0 kg/m³ Decomposition Temperature (SDS) 2730.0 °C Density (SDS) 2.25 g/cm³ at 20°C - Shelf Life & Stability
Value Units Test Method / Conditions Shelf Life 2190.0 d
