CARPOL® GSP-520

CARPOL® GSP-520 is a glycerin/sucrose-initiated polyether polyol. The high functionality of the initiators yields a resultant polyol with a nominal functionality of five and a typical hydroxyl number of 520. Due to this polyol’s high functionality, it is typically used in rigid foam and its applications. Blending CARPOL® GSP-520 with other polyether polyols allows for foam systems with high to lower degrees of crosslinking.

Principal: Carpenter Co

Functions: Crosslinking Agent

View All Documents

Enhanced TDS

Identification & Functionality

Chemical Family
Function
Crosslinking Agent
Plastics & Elastomers Functions
Product Code
MITM02834
Technologies
Product Families

Features & Benefits

Applications & Uses

Plastics & Elastomers End Uses

Properties

Physical Form
Product Reactivity



Reactivity Profile at 70°C  Time (seconds)
Cream 11
Gel 102
Free Rise 155
Tack Free 172



Technical Details & Test Data

Technical Data



Viscosity Information

  • 77 °F - 34000 cP
  • 140 °F - 1190 cP
  • 160 °F - 580 cP

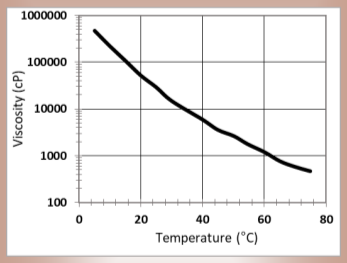

CARPOL® GSP-520 - Viscosity Profile - 1



Packaging & Availability

Packaging Type
Product Packaging



Sample Sizes Products Packaged/Shipped Net Weight
1 quart Drum 460 lb
1 gallon Totebin 2300 lb
5 gallon Tankwagon 40000 - 45000 lb
  Railcar 185000 - 189000 lb



Storage & Handling

Storage Conditions

CARPOL® GSP-520 will absorb water if the product container is not secured properly. This may affect reactivity, appearance, and performance. Therefore, it is advised that all receptacles containing this material be tightly fastened and stored in a dry place.

Other

Amine Value
2.0 mg KOH/g
Appearance
Free and clear
Change in Low Temperature Age
-0.5 %
Color Scale
max. 12.0 Gardner
Compressive Strength
26.0 psi
Compressive Strength
18.0 psi
Density
2.0 lb/in³
Density
9.08 lb/gal
Flash Point (SDS)
min. 200.0 °F
Group Principal Number
S001809
Hydroxyl Value
520.0 mg KOH/g
Item Number
Moisture Content
max. 0.1 %
Odor (SDS)
Slight sweet odor
Potassium Content
max. 10.0 ppm
Principal
Relative Humidity
2.8 %
Specific Gravity (SDS)
1.1
Viscosity
34000.0 cPs
pH
10.0
pH (SDS)
10.0
Optical Properties
ValueUnitsTest Method / Conditions
Color Scalemax. 12.0 GardnerGardnerGardner Color Scale
Chemical Properties
ValueUnitsTest Method / Conditions
Amine Value2.0 mg KOH/gmg KOH/g
Hydroxyl Value520.0 mg KOH/gmg KOH/g
pH10.0-1% 10:6 IPA:Water
Mechanical Properties
ValueUnitsTest Method / Conditions
Compressive Strength26.0 psipsiparallel
Compressive Strength18.0 psipsiPET, at 1/3 standard depth with 1% titanium dioxide (ABS 4% titanium dioxide, PS 2% titanium dioxide)
Physical Properties
ValueUnitsTest Method / Conditions
Change in Low Temperature Age-0.5 %%at -20°F, 28 days
Density2.0 lb/in³lb/in³
Density9.08 lb/gallb/galAt 25°C
Moisture Contentmax. 0.1 %%
Relative Humidity2.8 %%at 158°F, humid age, 28 days, 90% Rel. humidity
Viscosity34000.0 cPscPsAt 25°C
Material Composition
ValueUnitsTest Method / Conditions
Potassium Contentmax. 10.0 ppmppm
SDS Physical and Chemical Properties
ValueUnitsTest Method / Conditions
Flash Point (SDS)min. 200.0 °F°F
Specific Gravity (SDS)1.1-Water = 1
pH (SDS)10.0-
