Enhanced TDS
Identification & Functionality
- Base Chemicals Functions
- Blend
- No
- Chemical Family
- Chemical Name
- Country of Origin
- Fluids & Lubricants Functions
- Function
- Filler, Intermediate
- Plastics & Elastomers Functions
- Product Code
- MITM12962
- Single Ingredient
- Yes
- Synonyms
- Elbor
- Technologies
- Product Families
Features & Benefits
- CASE Ingredients Features
- Fluids & Lubricants Features
- Materials Features
- Product Benefits
3M™ Boron Nitride is a versatile ceramic material offering thermal conductivity, temperature stability, chemical resistance, high reflectivity, lightweighting and electrical insulation. The structure of layered hexagonal plates provides outstanding lubricating properties and is non-abrasive to tooling.
- Product Benefits
3M™ Technical Ceramics Offers a family of Boron nitride cooling filler materials:
- 3M™ Boron Nitride Cooling Filler Platelets: Powders of highly crystalline single platelets.
- 3M™ Boron Nitride Cooling Filler Agglomerates (experimental product): Soft, randomly oriented aggregated platelets.
- 3M™ Boron Nitride Cooling Filler Flakes 500-15: Hard, oriented aggregated platelets.
- 3M™ Boron Nitride is a versatile ceramic material offering thermal conductivity, temperature stability, chemical resistance, high reflectivity, lightweighting and electrical insulation. The structure of layered hexagonal plates provides outstanding lubricating properties and is non-abrasive to tooling.
- Product Features
- Excellent heat spreading.
- Excellent heat transfer.
- Ideal as secondary filler to boost thermal conductivity.
- Maintains high thermal conductivity under high-shear compounding.
- Optimized through-plane thermal conductivity
Applications & Uses
- Fluids & Lubricants End Use
- Fluids & Lubricants Type
- Plastics & Elastomers End Uses
- Markets
- Applications
- Processing Information
Factors such as melt temperature, compounding technique, injection rate and more can have a significant effect on the thermal and electrical insulative properties of parts made with boron nitride cooling fillers.
Properties
- Physical Form
Regulatory & Compliance
- Quality Standards
Technical Details & Test Data
- Technical Data

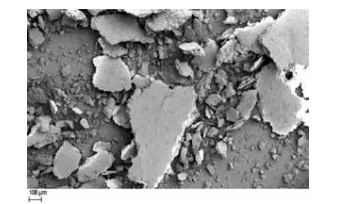

3M™ Boron Nitride Cooling Filler Flakes CFF 500-15
Preferred for lowest viscosity in epoxies and silicones. High thermal conductivity.
Packaging & Availability
- Packaging Type
Principal Information
- Group Principal Number
- S002409
- Principal
Other
- Color (SDS)
- White
- Item Number
- Odor (SDS)
- Odorless
- Temperature Control
- No
- USA/DOT UN Number
- Not Applicable
- Chemical Properties
Value Units Test Method / Conditions Active Oxygen Content max. 0.7 % % - Material Composition
Value Units Test Method / Conditions Boron Nitride Content min. 98.5 % % Boron Trioxide Content max. 0.1 % % Carbon Content max. 0.2 % % - Physical Properties
Value Units Test Method / Conditions Bulk Density 0.5-0.7 g/cm³ g/cm³ DIN Method Bulk Density 0.5-0.7 g/cm³ g/cm³ ISO 23145-2 Particle Size 20.0-150.0 µm µm Laser Light Scattering d(0.1), mastersizer 2000, dry, 0.1 bardispersion in ethanol Particle Size 160.0-400.0 µm µm Laser Light Scattering d 0.5, mastersizer 2000, dry, 0.1 bar, dispersion in ethanol Specific Surface Area max. 3.0 m²/g m²/g - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Bulk Density (SDS) 50.0-550.0 - Decomposition Temperature (SDS) 2730.0 °C °C Density (SDS) 2.25 g/cm³ g/cm³ at 20°C Solubility In Water (SDS) max. 0.000162 g/L g/L - Shelf Life & Stability
Value Units Test Method / Conditions Shelf Life 0.0 -
