Enhanced TDS
Identification & Functionality
- CASE Ingredients Functions
- Chemical Family
- Composite Materials Functions
- Function
- Toughness Modifier, Toughener
- Plastics & Elastomers Functions
- Product Code
- MITM15043
- Technologies
- Product Families
Features & Benefits
- Materials Features
- Key Features
- Methylmethacrylate-Butadiene-Styrene (MBS) core shell
- Tailored for epoxy thermosetting resins
- Optimized to the most demanding applications
- Matching low temperature requirements (toughening, elongation, lapshear)
Applications & Uses
- Product Uses
- Clearstrength® XT151 is particularly recommended to Increase the toughness of epoxy thermoset systems such as structural adhesives and composites.
- Loading levels depend on fi nal application and associated technical performance requirements.
- Clearstrength® XT151 can be advantageously used to replace standard core shell modifier powders but also liquid masterbatches of pre-dispersed core shell particles.
- Dispersion Information
- Clearstrength® XT151 powder can be dispersed in epoxy preferably with a medium shear mixer in temperature.
- Dilution of high core shell content preparation can be achieved with standard anchor blade homogenization.
EXAMPLE OF DISPERSION CONDITIONS Doseage 15-20 wt% Temperature 80°C Mixing Time 1 h Mixing Shear Medium Example of dispersion conditions with dispersive blade

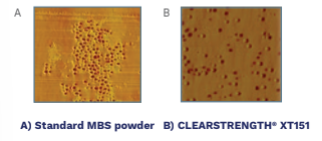

Enhancing compatibility reaching dispersion at the individual core shell in most high Tg and more polar epoxy systems.
Properties
- Physical Form
Technical Details & Test Data
- Toughening of High Tg Epoxy
Tg (°C) Lap Shear (MPa) K1C (MPa/m) GIC (J/m²) Neat 0.6 88 Standard MBS Powder (5 wt %) No Shift 6.2 1.1 380 Clearstrength® XT151 (5 wt %) No Shift 7.9 1.7 650 Clearstrength® XT151 yields superior toughness and shear adhesion strength than Standard MBS powder in high Tg epoxy (Tg>200°C).

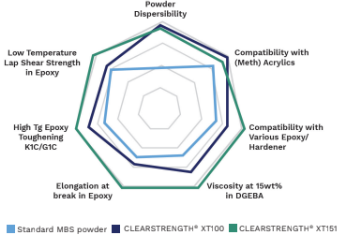

- Overall Superior Performance in Epoxy

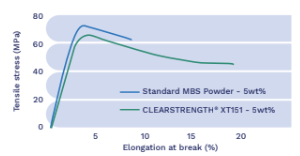

- Tensile Properties (23°C) – Cured Epoxy
Example of higher elongation at break reached in medium Tg Epoxy system
- Viscosity Influence in DGEBA Resin (23°C)
Lower viscosity in epoxy at high dosage of core shell particles allows higher additive concentration in applications where solution viscosity could be a limitation like in composite infusion, prepreg, and coatings.
Packaging & Availability
- Packaging Type
Other
- Appearance
- White powder
- Color (SDS)
- White
- Group Principal Number
- S000003
- Insoluble in (SDS)
- Water
- Item Number
- Odor (SDS)
- Slightly acrylic
- Other Hazards
- Processing may release vapors and/or fumes which cause eye, skin and respiratory tract irritation., The product, in the form supplied, is not anticipated to produce significant adverse human health effects. Contains high molecular weight polymer(s). Effects due to processing releases: Irritating to eyes, respiratory system and skin. Possible cross sensitization with other acrylates and methacrylates. Prolonged or repeated exposure may cause: headache, drowsiness, nausea, weakness, (severity of effects depends on extent of exposure)., Handle in accordance with good industrial hygiene and safety practice. (powder) Mechanical irritation effects from dust exposure are possible at ambient temperature. This product may release fume and/or vapor of variable composition depending on processing time and temperature.
- Principal
- Physical Properties
Value Units Test Method / Conditions Bulk Density 0.3 g/cm³ g/cm³ Particle Size max. 200.0 nm nm core shell Particle Size 200.0 µm µm Specific Gravity 1.02 - - Material Composition
Value Units Test Method / Conditions Volatile Content max. 1.0 %(W/W) %(W/W) - Application Information
Value Units Test Method / Conditions Dosage (Use Level) 15.0-20.0 %(W/W) %(W/W) - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Decomposition Temperature (SDS) min. 662.0 °F °F Density (SDS) 1.0 g/cm³ g/cm³ at 20°C Specific Gravity (SDS) 1.0 - at 20°C, water = 1
