Enhanced TDS
Identification & Functionality
- Blend
- No
- CASE Ingredients Functions
- Chemical Family
- Chemical Name
- Product Code
- MITM00580
- Single Ingredient
- Yes
- Technologies
- Product Families

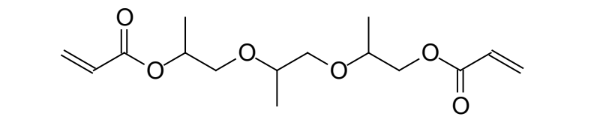

- Chemical Structure
Features & Benefits
- CASE Ingredients Features
- Key Features
TPGDA is characterized by:
- Low viscosity
- Good diluency of acrylate oligomers
- Hydrophobicity
UV/EB curable formulated products containing TPGDA are characterized by:
- Good flexibility
- Improved water resistance
- Good cure speed without brittleness
The actual properties of UV/EB cured products also depend on the selection of other formulation components such as oligomers, additives and photoinitiators.
Applications & Uses
- Coating End Applications
- Cure Method
- Ink & Toner End Applications
- Product Applications
- TPGDA finds application in UV/EB cured ink and coating systems.
- TPGDA is an especially useful reactive diluent when water resistance and low viscosity are required.
- Dilution of viscous oligomers or polymers.
Properties
- Physical Form
Regulatory & Compliance
- Certifications & Compliance
- Contains any chemicals listed on Prop 65 (including impurities, residues, catalysts, monomers, and by-products and excluding heavy metals)?
Packaging & Availability
- Packaging Type
Principal Information
- Group Principal Number
- S000001
- Principal
Storage & Handling
- Storage Conditions
- Care should be taken not to expose the product to high temperature conditions, direct sunlight, ignition sources, oxidizing agents, alkalis or acids. This might cause uncontrollable polymerization of the product with the generation of heat. Storage and handling should be in stainless steel, amber glass, amber polyethylene or baked phenolic lined containers.
- Procedures that remove or displace oxygen from the material should be avoided. Do not store this material under an oxygen free atmosphere. Dry air is recommended to displace material removed from the container. Wash thoroughly after handling. Keep container tightly closed. Use with adequate ventilation.
Other
- Appearance
- Clear liquid
- Appearance (SDS)
- Liquid
- Color (SDS)
- Yellowish
- IATA/ICAO Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- IATA/ICAO Technical name (N.O.S.)
- Tripropylene glycol diacrylate
- IATA/ICAO UN Number
- UN3082
- IMO/IMDG Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- IMO/IMDG Technical name (N.O.S.)
- Tripropylene glycol diacrylate
- IMO/IMDG UN Number
- UN3082
- Item Number
- Odor (SDS)
- Ester acrylate
- Other Hazards
- Polymerization may occur from excessive heat, contamination or exposure to direct sunlight .
- TDG Canada Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- TDG Canada Technical name (N.O.S.)
- Tripropylene glycol diacrylate
- TDG Canada UN Number
- UN3082
- USA/DOT Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- USA/DOT Technical name (N.O.S.)
- Tripropylene glycol diacrylate
- USA/DOT UN Number
- UN3082
- Optical Properties
Value Units Test Method / Conditions Color Scale max. 50.0 Pt-Co Pt-Co - Chemical Properties
Value Units Test Method / Conditions Acid Value max. 0.4 mg KOH/g mg KOH/g - Physical Properties
Value Units Test Method / Conditions Density 1.03 g/mL g/mL At 25°C Flash Point min. 100.0 °C °C SetaFlash Closed Cup Viscosity 10.0-15.0 cPs cPs At 25°C - Material Composition
Value Units Test Method / Conditions Solvent Content max. 0.09 %(W/W) %(W/W) residue - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Autoignition Temperature (SDS) 214.0 °C °C Boiling Point (SDS) 310.0 °C °C Melting Point (SDS) -81.0 °C °C glass transition point Solubility In Water (SDS) 74.8 mg/L mg/L at 25°C Specific Gravity (SDS) 1.03 - Vapor Pressure (SDS) 0.013 hPa hPa At 25°C Viscosity (SDS) 10.0-15.0 mPa.s mPa.s at 25°C
