Enhanced TDS
Identification & Functionality
- Blend
- No
- Chemical Family
- Chemical Name
- Country of Origin
- Product Code
- MITM12973
- Product Functions
- Single Ingredient
- Yes
- Synonyms
- Elbor
- Technologies
- Product Families
Features & Benefits
- Labeling Claims
- Product Features
- Product Features
- Increases thermal conductivity while maintaining electrical insulation.
- Compatible with standard polymers.
- Low density
Applications & Uses
- Product End Uses
- Markets
- Applications
- Processing Information
Factors such as melt temperature, compounding technique, injection rate and more can have a significant effect on the thermal and electrical insulative properties of parts made with boron nitride cooling fillers.
Properties
- Physical Form
Regulatory & Compliance
- Compliance (Industry Standards)
- Compliance (Regulatory)
- Manufacturing Facility Standards
Technical Details & Test Data

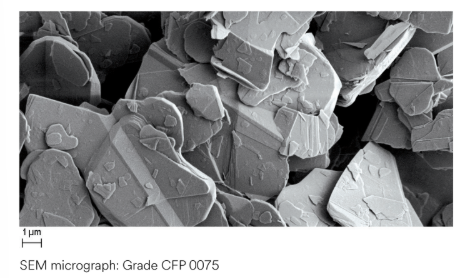

- SEM Micrograph
Optimal all-purpose grades for injection molded and potting resin parts.
Principal Information
- Group Principal Number
- S002409
- Principal
Other
- Color (SDS)
- White
- Flammability (SDS)
- Not classified
- Item Number
- Odor (SDS)
- Odorless
- Protect from Freezing
- No
- Temperature Control
- No
- USA/DOT UN Number
- Not Applicable
- Chemical Properties
Value Units Test Method / Conditions Active Oxygen Content max. 0.7 % - Material Composition
Value Units Test Method / Conditions Boron Nitride Content min. 98.5 % Boron Trioxide Content max. 0.1 % Carbon Content max. 2.0 % - Physical Properties
Value Units Test Method / Conditions Bulk Density 0.3-0.55 g/cm³ DIN Method Bulk Density 0.3-0.55 g/cm³ ISO 23145-2 Particle Size 125.0-190.0 µm Laser Light Scattering 0.1 bar, d(0.5), mastersizer 2000, dry Particle Size 200.0-300.0 µm Laser Light Scattering 0.1 bar, d(0.9), mastersizer 2000, dry Particle Size 65.0-120.0 µm Laser Light Scattering d 0.1, mastersizer 2000, dry, 0.1 bar Specific Surface Area max. 3.5 m²/g - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Bulk Density (SDS) 300.0-550.0 kg/m³ Decomposition Temperature (SDS) 2730.0 °C Density (SDS) 2.25 g/cm³ At 20°C, 1013 Hpa Lower Explosion Limit (SDS) min. 3000.0 g/m³ EN 14034-3 - Shelf Life & Stability
Value Units Test Method / Conditions Shelf Life 2190.0 d
