Enhanced TDS
Identification & Functionality
- Blend
- No
- CASE Ingredients Functions
- Chemical Family
- Function
- Crosslinking Agent
- Product Code
- MITM00223
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- CASE Ingredients Features
- Product Features
- Fast cure response
- Substrate wetting
- Low formaldehyde release upon cure
- Humidity and salt spray resistance
Applications & Uses
- Coating End Applications
- Compatible Polymers & Resins
- Markets
- Applications
- Product Applications
- Automotive coating formulations
- General industrial coatings
Properties
- Physical Form
- Soluble In
Regulatory & Compliance
- Certifications & Compliance
- Contains any chemicals listed on Prop 65 (including impurities, residues, catalysts, monomers, and by-products and excluding heavy metals)?
Technical Details & Test Data
- Technical Data
- CYMEL 1158 resin is an effective crosslinker for backbone polymer resins containing hydroxyl, carboxyl, and amide functional groups, such as those found on alkyd, polyester or acrylic resins.
- Although the optimum level of CYMEL 1158 resin should be determined experimentally, ratios of 25 to 35% based on resin solids are typically most effective.
- Catalysis Information
- CYMEL 1158 resin may not require the addition of an acid catalyst to the formulation to obtain effective cure.
- In many instances, the acidity of the backbone polymer in the formulation is sufficient to catalyze the reaction under normal baking conditions (15-20 minutes at 120-150°C).
- If catalyst addition is required, then 0.5-1.0% of CYCAT® 296-9 catalyst based on total resin solids is recommended.

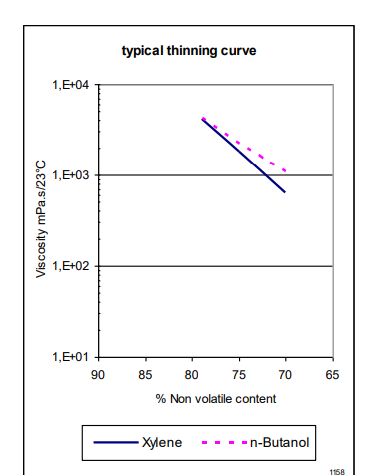

- Typical Thinning Curve
Packaging & Availability
Principal Information
- Group Principal Number
- S000001
- Principal
Storage & Handling
- Storage Conditions
- CYMEL 1158 resin has a shelf life of 2 years from the date of manufacture when stored at temperatures between 5°C and 30°C.
- Although lower temperatures are not detrimental to stability, its viscosity will increase, possibly making the resin difficult to pump or pour.
- The viscosity will reduce again on warming, but care should be taken to avoid excessive local heat as this can cause an irreversible increase in viscosity
Other
- Appearance
- Clear liquid
- Appearance (SDS)
- Liquid
- Color (SDS)
- Colorless
- IATA/ICAO Proper Shipping Name
- Resin solution
- IATA/ICAO UN Number
- UN1866
- IMO/IMDG Proper Shipping Name
- Resin solution
- IMO/IMDG UN Number
- UN1866
- Insoluble in (SDS)
- Water
- Item Number
- Odor (SDS)
- Formaldehyde and solvent
- Other Hazards
- Not applicable
- TDG Canada Proper Shipping Name
- Resin solution
- TDG Canada UN Number
- UN1866
- USA/DOT Proper Shipping Name
- Resin solution
- USA/DOT UN Number
- UN1866
- Optical Properties
Value Units Test Method / Conditions Color Scale max. 70.0 APHA APHA Color Scale max. 70.0 Gardner Gardner ISO 6271 - Shelf Life & Stability
Value Units Test Method / Conditions Shelf Life 2.0 yr yr - Physical Properties
Value Units Test Method / Conditions Viscosity 3000.0-7000.0 mPa.s mPa.s at 23°C - Material Composition
Value Units Test Method / Conditions Non-Volatile Content 78.0-82.0 %(W/W) %(W/W) at 45°C, foil, 45 min - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Density (SDS) 1.06 g/cm³ g/cm³ Flash Point (SDS) 47.0 °C °C SetaFlash Closed Cup Volatile Content (SDS) 20.0 %(W/W) %(W/W)
