Enhanced TDS
Identification & Functionality
- Blend
- No
- CASE Ingredients Functions
- Chemical Family
- Function
- Monomer
- Product Code
- MITM00442
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- CASE Ingredients Features
- Performance Highlights
EBECRYL® 838 is characterized by:
- Fast cure response
- Moderate viscosity
UV/EB cured products containing EBECRYL 838 are characterized by the following performance properties:
- Good abrasion/scratch resistance
- High surface hardness
- Solvent resistance
The actual properties of UV/EB cured products also depend on the selection of other formulation components such as reactive diluents, additives and photoinitiators.
Applications & Uses
- Applicable Processes
- Application Method
- Compatible Substrates & Surfaces
- Cure Method
- Ink & Toner End Applications
- Markets
- Applications
- Product Applications
Formulated UV/EB curable products containing EBECRYL 838 may be applied via direct or reverse roll, offset gravure, metering rod, slot die, knife over roll, air knife, curtain, immersion, and spin coating methods, as well as offset and screen printing. EBECRYL® 838 is recommended for use in:
- Paper upgrading
- Coatings for wood and plastics
- Abrasion and scratch resistant coatings
- Dry offset inks
- Fast curing coatings and inks
Properties
- Physical Form
- Product Properties
- Good abrasion/scratch resistance
- High surface hardness
- Solvent resistance
Technical Details & Test Data
- Viscosity Reduction

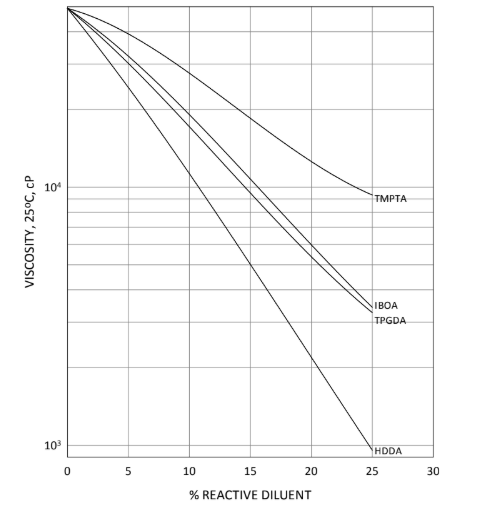

EBECRYL® 838 - Viscosity Reduction With Reactive Diluents
Graph I shows the viscosity reduction of EBECRYL® 838 with 1,6-hexanediol diacrylate (HDDA), isobornyl acrylate (IBOA), trimethylolpropane triacrylate (TMPTA), and tripropylene glycol diacrylate (TPGDA). Although viscosity reduction can be achieved with non-reactive solvents, reactive diluents are preferred because they are essentially 100 percent converted during UV/EB exposure to form a part of the coating or ink, thus reducing solvent emissions. The specific reactive diluents used will influence performance properties such as hardness and flexibility.

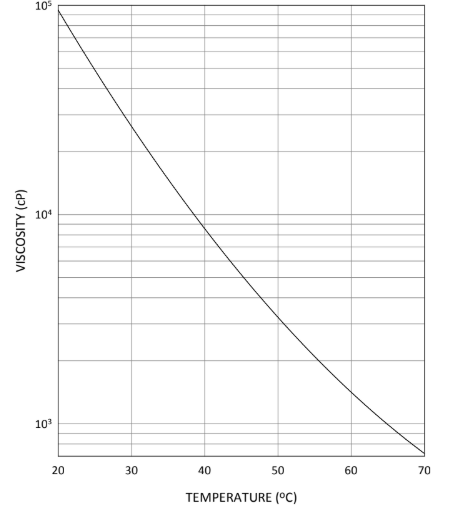

EBECRYL® 838 - Viscosity vs. Temperature
Packaging & Availability
- Packaging Type
Principal Information
- Group Principal Number
- S000001
- Principal
Storage & Handling
- Storage Conditions
- Care should be taken not to expose the product to high temperature conditions, direct sunlight, ignition sources, oxidizing agents, alkalis or acids.
- This might cause uncontrollable polymerization of the product with the generation of heat.
- Storage and handling should be in stainless steel, amber glass, amber polyethylene or baked phenolic lined containers.
- Procedures that remove or displace oxygen from the material should be avoided.
- Do not store this material under an oxygen free atmosphere.
- Dry air is recommended to displace material removed from the container.
- Wash thoroughly after handling.
- Keep container tightly closed.
- Use with adequate ventilation.
Other
- Appearance
- Clear liquid
- Appearance (SDS)
- Liquid resin
- Color (SDS)
- Clear pale yellow
- Item Number
- Odor (SDS)
- Acrylate
- Other Hazards
- Polymerization may occur from excessive heat, contamination or exposure to direct sunlight .
- USA/DOT UN Number
- Not Applicable
- Optical Properties
Value Units Test Method / Conditions Color Scale max. 3.0 Gardner Gardner Gardner Color Scale - Chemical Properties
Value Units Test Method / Conditions Acid Value max. 30.0 mg KOH/g mg KOH/g - Mechanical Properties
Value Units Test Method / Conditions Elongation 5.0 % % at break, UV cured 125 μ thick films Tensile Strength 12500.0 psi psi at break, UV cured 125 μ thick films Tensile Strength 12500.0 psi psi UV cured 125 µ thick films - Physical Properties
Value Units Test Method / Conditions Density 1.18 g/mL g/mL At 25°C Glass Transition Temperature (Tg) 60.0 °C °C Dynamic Mechanical Analysis (DMA) at break, UV cured 125 μ thick films Glass Transition Temperature (Tg) 60.0 °C °C Dynamic Mechanical Analysis (DMA) UV cured 125 µ thick films Storage Temperature 39.0-104.0 °F °F Viscosity 45000.0-55000.0 mPa.s mPa.s At 25°C - Material Composition
Value Units Test Method / Conditions Polyol Content max. 25.0 %(W/W) %(W/W) as acrylated - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Boiling Point (SDS) min. 100.0 °C °C Density (SDS) 1.19 g/cm³ g/cm³ Flash Point (SDS) min. 100.0 °C °C Vapor Pressure (SDS) 0.013 hPa hPa At 25°C Viscosity (SDS) 45000.0-55000.0 mPa.s mPa.s at 25°C Volatile Content (SDS) max. 0.1 % %
