Enhanced TDS
Identification & Functionality
- Blend
- No
- CASE Ingredients Functions
- Chemical Family
- Chemical Name
- Function
- Crosslinking Agent
- Product Code
- MITM00259
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- CASE Ingredients Features
- Product Benefits
- Fast reaction speed
- Good block resistance
- Good resistance properties
Applications & Uses
- Coating End Applications
- Compatible Polymers & Resins
- Compatible Substrates & Surfaces
- Cure Method
- Markets
- Applications
- Product Applications
- Acid curing wood coating formulations
Properties
- Physical Form
- Soluble In
- Pot Life Data
- To extend catalyzed pot life of the formulation, addition of primary alcohols, such as n-butanol and ethanol, is required at concentrations of 10-25% on total resin solids.
- Faster evaporating alcohols will improve speed of dry.
- Catalysis Information
- CYMEL® MI-97-IX Resin responds best to sulfonic acid catalysts, such as CYCAT® 4040 catalyst.
- For acid curing wood coating formulations, generally 6 to 10% CYCAT 4040 catalyst on total binder of the formulation is sufficient to obtain fast drying behavior at room temperature.
- Backbone Polymer Selection
- CYMEL® MI-97-IX Resin contains a combination of butoxymethyl, methylol and imino functionalities, making it a very effective crosslinker for backbone polymer resins containing hydroxyl functional groups, such as alkyd, polyester or acrylic resins.
- CYMEL® MI-97-IX Resin is very reactive and has a high tendency to self condense at rather low baking temperatures, providing films with very good hardness, gloss, and resistance properties.
- Although the optimum level of CYMEL® MI-97-IX Resin should be determined experimentally, ratios of 25 to 35% based on resin solids are typically most effective.
Technical Details & Test Data

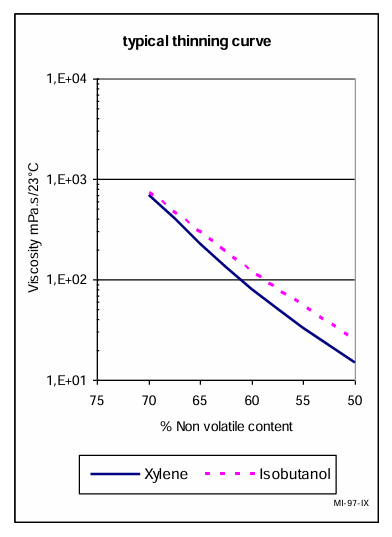

- Viscosity vs Percentage Non Volatile Content Graph
Packaging & Availability
- Packaging Type
Principal Information
- Group Principal Number
- S000001
- Principal
Storage & Handling
- Storage Conditions
- CYMEL® MI-97-IX Resin has a shelf life of 4 years from date of manufacture when stored at temperatures between 5°C and 30°C.
- Although low temperatures are not detrimental to stability, the viscosity of the product will increase making the resin more difficult to pump or pour.
- Product viscosity can be returned to normal by gentle re-warming, however, care should be taken to avoid excessive localized heating as this can cause an irreversible increase in viscosity.
Other
- Appearance
- Clear liquid
- Appearance (SDS)
- Viscous liquid
- Color (SDS)
- Colorless
- IATA/ICAO Proper Shipping Name
- Resin solution
- IATA/ICAO UN Number
- UN1866
- IMO/IMDG Proper Shipping Name
- Resin solution
- IMO/IMDG UN Number
- UN1866
- Insoluble in (SDS)
- Water
- Item Number
- Odor (SDS)
- Slight formaldehyde, xylene and isobutanol
- Other Hazards
- Not applicable
- TDG Canada Proper Shipping Name
- Resin solution
- TDG Canada UN Number
- UN1866
- USA/DOT Proper Shipping Name
- Resin solution
- USA/DOT UN Number
- UN1866
- Optical Properties
Value Units Test Method / Conditions Color Scale max. 15.0 APHA Color Scale max. 15.0 Gardner ISO 6271 - Chemical Properties
Value Units Test Method / Conditions Free Formaldehyde Content 0.4-0.7 % Sulfite Method - Shelf Life & Stability
Value Units Test Method / Conditions Shelf Life 4.0 yr - Physical Properties
Value Units Test Method / Conditions Viscosity 480.0-760.0 mPa.s at 23°C - Material Composition
Value Units Test Method / Conditions Non-Volatile Content 68.0-72.0 %(W/W) at 100°C, 1hr, pan - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Density (SDS) 1.01 g/cm³ at 25°C Evaporation Rate (SDS) max. 1.0 % Flash Point (SDS) 33.0 °C SetaFlash Closed Cup Relative Vapor Density (SDS) min. 1.0 - Storage Temperature (SDS) -20.0-30.0 °C Volatile Content (SDS) 30.0 %(W/W)
