Enhanced TDS
Identification & Functionality
- Blend
- No
- CASE Ingredients Functions
- Chemical Family
- Function
- Binder
- Product Code
- MITM00349
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- CASE Ingredients Features
- Performance Highlights
EBECRYL® 1290 is characterized by:
- Fast cure response
- Light color
UV/EB cured products containing EBECRYL® 1290 are characterized by the following performance properties:
- Excellent scratch and abrasion resistance
- High gloss
- High surface hardness
- Chemical resistance
- Non-yellowing
The actual properties of UV/EB cured products also depend on the selection of other formulation components such as reactive diluents, additives and photoinitiators.
Applications & Uses
- Application Method
- Coating End Applications
- Compatible Substrates & Surfaces
- Cure Method
- Markets
- Applications
- Product Applications
Formulated UV/EB curable products containing EBECRYL® 1290 may be applied via direct or reverse roll, offset gravure, metering rod, slot die, knife over roll, air knife, curtain, immersion and spin coating methods, as well as screen printing.
EBECRYL® 1290 is recommended for use in:
- Scratch and abrasion resistant coatings (hardcoats)
- Clear and pigmented coatings for paper, paperboard, wood, rigid plastics.
- Additive to improve cure speed, solvent resistance, and abrasion resistance.
Properties
- Physical Form
Technical Details & Test Data

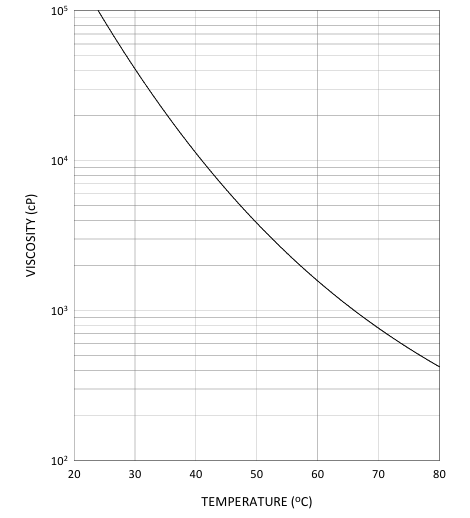

- Viscosity vs Temperature
Graph illustrates the change in viscosity of EBECRYL® 1290 with increasing temperature.

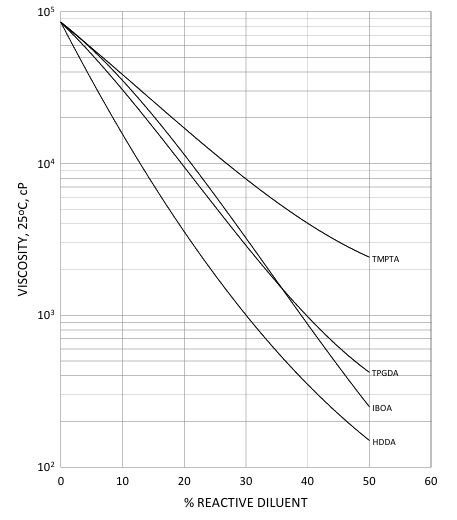

- Viscosity Reduction With Reactive Diluents
Graph shows the viscosity reduction of EBECRYL® 1290 with 1,6-hexanediol diacrylate (HDDA), isobornyl acrylate (IBOA), trimethylolpropane triacrylate (TMPTA), and tripropylene glycol diacrylate (TPGDA). Although viscosity reduction can be achieved with non-reactive solvents, reactive diluents are preferred because they are essentially 100 percent converted during UV/EB exposure to form a part of the coating or ink, thus reducing solvent emissions. The specific reactive diluents used will influence performance properties such as hardness and flexibility.
Packaging & Availability
Principal Information
- Group Principal Number
- S000001
- Principal
Storage & Handling
- Storage Conditions
- Care should be taken not to expose the product to high temperature conditions, direct sunlight, ignition sources, oxidizing agents, alkalis or acids.
- This might cause uncontrollable polymerization of the product with the generation of heat.
- Storage and handling should be in stainless steel, amber glass, amber polyethylene or baked phenolic lined containers.
- Procedures that remove or displace oxygen from the material should be avoided.
- Do not store this material under an oxygen free atmosphere.
- Dry air is recommended to displace material removed from the container.
- Wash thoroughly after handling.
- Keep container tightly closed.
- Use with adequate ventilation.
Other
- Appearance
- Clear liquid
- Appearance (SDS)
- Clear viscous liquid
- Color (SDS)
- Clear
- IATA/ICAO Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- IATA/ICAO Technical name (N.O.S.)
- Mixture pentaerythritol tri/t/tetraacrylate, 2,6-(di-t-butyl)-p-cresol
- IATA/ICAO UN Number
- UN3082
- IMO/IMDG Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- IMO/IMDG Technical name (N.O.S.)
- Mixture pentaerythritol tri/t/tetraacrylate, 2,6-(di-t-butyl)-p-cresol
- IMO/IMDG UN Number
- UN3082
- Item Number
- Odor (SDS)
- Acrylate
- Other Hazards
- Polymerization may occur from excessive heat, contamination or exposure to direct sunlight .
- TDG Canada Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- TDG Canada Technical name (N.O.S.)
- Mixture pentaerythritol tri/t/tetraacrylate, 2,6-(di-t-butyl)-p-cresol
- TDG Canada UN Number
- UN3082
- USA/DOT Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- USA/DOT Technical name (N.O.S.)
- Mixture pentaerythritol tri/t/tetraacrylate, 2,6-(di-t-butyl)-p-cresol
- USA/DOT UN Number
- UN3082
- Optical Properties
Value Units Test Method / Conditions Color Scale max. 1.0 Gardner Gardner Color Scale - Mechanical Properties
Value Units Test Method / Conditions Elongation 2.0 % at break, UV cured, approx. 125μ thick films Tensile Strength 6700.0 psi UV cured 125 µ thick films - Physical Properties
Value Units Test Method / Conditions Density 1.19 g/mL At 25°C Glass Transition Temperature (Tg) 69.0 °C Dynamic Mechanical Analysis (DMA) UV cured 125 µ thick films Viscosity 1800.0-2200.0 mPa.s At 60°C - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Boiling Point (SDS) min. 100.0 °C Density (SDS) 1.18 g/cm³ Melting Point (SDS) 77.0-104.0 °F Vapor Pressure (SDS) 0.013 hPa at 20°C Viscosity (SDS) 1800.0-2200.0 mPa.s At 60°C Volatile Content (SDS) max. 0.5 %
