EBECRYL® 130

EBECRYL® 130 is a cyclic aliphatic diacrylate useful as a reactive diluent in UV (ultraviolet) or EB (electron beam) curable coatings and inks. EBECRYL® 130 can impart a combination of hardness, toughness, and resiliency coupled with improved adhesion properties on various substrates. EBECRYL® 130 can also significantly increase the Tg of cured polymers. EBECRYL® 130 is particularly useful for scratch resistant coatings an plastics and as a pigment grinding vehicle for UV inkjet inks.

Principal: allnex Radcure

Functions: Grinding Aid, Reactive Diluent

Chemical Family: Acrylics & Acrylates

End Uses: Inkjet Ink, Radiation Curable Coating, Radiation Curable Ink

Features: Abrasion Resistance, Excellent Resilience, Excellent Scratch Resistance, Good Hardness, Good Toughness, High Glass Transition Temperature, Improves Adhesion, Low Odor, Low Viscosity, Multi-Substrate Adhesion, Reduced Shrinkage, Reduced Water Permeability, Thermal Resistance

Safety Data SheetTechnical Data Sheet
View All Documents

Enhanced TDS

Identification & Functionality

CASE Ingredients Functions
Grinding Aid,
Reactive Diluent
Chemical Family
Acrylics & Acrylates
Function
Grinding Aid, Reactive Diluent
INCI Name
Tricyclodecanedimethanol Diacrylate
Product Code
MITM00351
Technologies
CASE
Product Families
CASE — Additives
Functional Additives,
Other Additives
CASE — Solvents & Carriers
Diluents

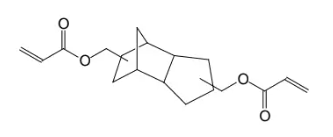

Chemical Structure

EBECRYL® 130 - Chemical Structure - 1

Features & Benefits

CASE Ingredients Features
Abrasion Resistance,
Excellent Resilience,
Excellent Scratch Resistance,
Good Hardness,
Good Toughness,
High Glass Transition Temperature,
Improves Adhesion,
Low Odor,
Low Viscosity,
Multi-Substrate Adhesion,
Reduced Shrinkage,
Reduced Water Permeability,
Thermal Resistance
Product Features

EBECRYL 130 is characterized by:

  • Low odor
  • Light color
  • Low viscosity

UV/EB cured products based on EBECRYL 130 are characterized by the following performance properties:

  • High Tg
  • Low shrinkage
  • Improved adhesion
  • Reduced water permeability

Applications & Uses

Application Method
Curtain Coating,
Direct Coating,
Gravure Coating,
Inkjet,
Lithography,
Reverse Roll Coating,
Screen Coating
Coating End Applications
Radiation Curable Coating
Compatible Substrates & Surfaces
Plastics
Cure Method
Radiation Cure
Ink & Toner End Applications
Inkjet Ink,
Radiation Curable Ink
Markets
Printing & Packaging
Applications
Printing & Packaging — Printing & Inks
Inkjet Printing
Product Applications

EBECRYL 130 can be used to disperse all process color pigments via bead mill for the production of inkjet inks.

Formulated UV/EB curable products containing EBECRYL 130 may be applied via lithographic, screen, gravure, inkjet, direct or reverse roll, and curtain coating methods. EBECRYL 130 is recommended for use in:

  • Scratch and abrasion resistant coatings
  • Coatings requiring increased thermal resistance
  • Inkjet inks

Properties

Physical Form
Liquid
Notes
  • (1) Theoretical determination based on the undiluted oligomer.
  • (2) UV cured 5.0 mil thick film.

Regulatory & Compliance

Certifications & Compliance
Regulation (EU) No. 2023/1115
Contains any chemicals listed on Prop 65 (including impurities, residues, catalysts, monomers, and by-products and excluding heavy metals)?
Yes

Packaging & Availability

Packaging Type
Drums,
Pails

Principal Information

Group Principal Number
S000001
Principal
allnex Radcure

Storage & Handling

Storage Conditions
  • Care should be taken not to expose the product to high temperature conditions, direct sunlight, ignition sources, oxidizing agents, alkalis or acids.
  • might cause uncontrollable polymerization of the product with the generation of heat.
  • Storage and handling should be in stainless steel, amber glass, amber polyethylene or baked phenolic lined containers.
  • Procedures that remove or displace oxygen from the material should be avoided.
  • Do not store this material under an oxygen free atmosphere.
  • Dry air is recommended to displace material removed from the container.
  • Wash thoroughly after handling.
  • Keep container tightly closed.
  • Use with adequate ventilation.

Other

Appearance
Clear liquid
Appearance (SDS)
Clear viscous liquid
Color (SDS)
Pale yellow to red
IATA/ICAO Proper Shipping Name
Environmentally hazardous substance, liquid, N.O.S.
IATA/ICAO Technical name (N.O.S.)
Aliphatic diacrylate
IATA/ICAO UN Number
UN3082
IMO/IMDG Proper Shipping Name
Environmentally hazardous substance, liquid, N.O.S.
IMO/IMDG Technical name (N.O.S.)
Aliphatic diacrylate
IMO/IMDG UN Number
UN3082
Item Number
ITM14742,
ITM14987
Odor (SDS)
Mild organic
Other Hazards
Polymerization may occur from excessive heat, contamination or exposure to direct sunlight .
TDG Canada Proper Shipping Name
Environmentally hazardous substance, liquid, N.O.S.
TDG Canada Technical name (N.O.S.)
Aliphatic diacrylate
TDG Canada UN Number
UN3082
USA/DOT Proper Shipping Name
Environmentally hazardous substance, liquid, N.O.S.
USA/DOT Technical name (N.O.S.)
Aliphatic diacrylate
USA/DOT UN Number
UN3082
Optical Properties
ValueUnitsTest Method / Conditions
Color Scalemax. 5.0GardnerGardner Color Scale
Chemical Properties
ValueUnitsTest Method / Conditions
Acid Valuemax. 1.0mg KOH/g
Mechanical Properties
ValueUnitsTest Method / Conditions
Elongation2.0%at Break
Tensile Modulus300000.0psiDynamic Mechanical Analysis (DMA) UV cured 125 µ thick films
Tensile Strength5000.0psi
Physical Properties
ValueUnitsTest Method / Conditions
Density1.09g/mLAt 25°C
Viscositymax. 200.0mPa.sAt 25°C
Material Composition
ValueUnitsTest Method / Conditions
Solid Content100.0%(W/W)
SDS Physical and Chemical Properties
ValueUnitsTest Method / Conditions
Boiling Point (SDS)min. 150.0°C
Density (SDS)1.09g/cm³
Melting Point (SDS)max. -80.0°C
Partition coefficient n-octanol/water (SDS)4.54-4.64-n-octanol/water
Solubility In Water (SDS)9.78mg/Lat 20°C
Vapor Pressure (SDS)0.0274PaAt 25°C
Viscosity (SDS)140.0-180.0mPa.sat 25°C
Volatile Content (SDS)max. 0.3%
