Enhanced TDS
Identification & Functionality
- Blend
- No
- CASE Ingredients Functions
- Chemical Family
- Function
- Monomer
- Product Code
- MITM00365
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- CASE Ingredients Features
- Product Benefits
EBECRYL® 230 is characterized by:
- Light color
- Low viscosity
UV/EB cured products containing EBECRYL® 230 are characterized by the following performance properties:
- Improved flexibility
- Non-yellowing
The actual properties of UV/EB cured products also depend on the selection of other formulation components such as reactive diluents, additives and photoinitiators.
Applications & Uses
- Adhesive & Sealant End Applications
- Application Method
- Coating End Applications
- Compatible Substrates & Surfaces
- Cure Method
- Ink & Toner End Applications
- Markets
- Applications
- Product Applications
Formulated UV/EB curable products containing EBECRYL® 230 may be applied via direct or reverse roll, offset gravure, metering rod, slot die, knife over roll, air knife, curtain, immersion and spin coating methods, as well as offset and screen printing. EBECRYL® 230 is recommended for:
- Increasing flexibility of UV/EB cured coatings and inks
- Laminating adhesives
- Coatings for plastic and metal
- Lithographic and screen inks
Properties
- Physical Form
- Product Properties
- Improved flexibility
- Non-yellowing
Regulatory & Compliance
- Certifications & Compliance
- Contains any chemicals listed on Prop 65 (including impurities, residues, catalysts, monomers, and by-products and excluding heavy metals)?
Technical Details & Test Data
- Technical Data

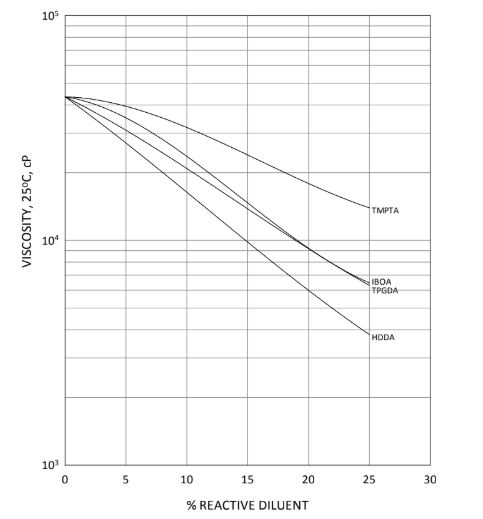

EBECRYL® 230 - VISCOSITY REDUCTION WITH REACTIVE DILUENTS
Graph I shows the viscosity reduction of EBECRYL® 230 with 1,6-hexanediol diacrylate (HDDA) isobornyl acrylate (IBOA), trimethylolpropane triacrylate (TMPTA) , and tripropylene glycol diacrylate (TPGDA). Although viscosity reduction can be achieved with non-reactive solvents, reactive diluents are preferred because they are essentially 100 percent converted during UV/EB exposure to form a part of the coating or ink, thus reducing solvent emissions. The specific reactive diluents used will influence performance properties such as hardness and flexibility.
Packaging & Availability
Principal Information
- Group Principal Number
- S000001
- Principal
Storage & Handling
- Storage Conditions
- Care should be taken not to expose the product to high temperature conditions, direct sunlight, ignition sources, oxidizing agents, alkalis or acids.
- This might cause uncontrollable polymerization of the product with the generation of heat.
- Storage and handling should be in stainless steel, amber glass, amber polyethylene or baked phenolic lined containers.
- Procedures that remove or displace oxygen from the material should be avoided.
- Do not store this material under an oxygen free atmosphere.
- Dry air is recommended to displace material removed from the container.
- Wash thoroughly after handling.
- Keep container tightly closed.
- Use with adequate ventilation.
Other
- Appearance
- Clear liquid
- Appearance (SDS)
- Liquid
- Color (SDS)
- Yellowish
- Insoluble in (SDS)
- Water
- Item Number
- Odor (SDS)
- Ester acrylate
- Other Hazards
- Polymerization may occur from excessive heat, contamination or exposure to direct sunlight .Contact with skin may cause a cross-allergic reaction in persons already sensitized to acrylates
- USA/DOT UN Number
- Not Applicable
- Optical Properties
Value Units Test Method / Conditions Color Scale max. 50.0 APHA - Mechanical Properties
Value Units Test Method / Conditions Elongation 83.0 % at break, UV cured 125 μ thick films - Physical Properties
Value Units Test Method / Conditions Density 1.08 g/mL At 25°C Glass Transition Temperature (Tg) -48.0 °C Dynamic Mechanical Analysis (DMA) at break, UV cured 125 μ thick films Viscosity 30000.0-60000.0 mPa.s At 25°C - Material Composition
Value Units Test Method / Conditions Oligomer Content 100.0 %(W/W) - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Boiling Point (SDS) min. 100.0 °C Density (SDS) 1.06 g/cm³ Vapor Pressure (SDS) max. 1.33 hPa at 20°C Volatile Content (SDS) max. 0.5 %(W/W)
