Enhanced TDS
Identification & Functionality
- Blend
- No
- CASE Ingredients Functions
- Chemical Family
- Function
- Binder
- Product Code
- MITM10419
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- CASE Ingredients Features
- Performance Highlights
EBECRYL® 8604 is characterized by: Light color and Low odor
UV/EB cured products containing EBECRYL 8604 are characterized by the following performance properties:
- Excellent reactivity
- Excellent exterior durability
- Good surface hardness
- Excellent abrasion resistance
- Toughness
- Non-yellowing
Applications & Uses
- Application Method
- Coating End Applications
- Compatible Substrates & Surfaces
- Cure Method
- Ink & Toner End Applications
- Markets
- Applications
- Product Applications
Formulated UV/EB curable products containing EBECRYL 8604 may be applied via direct or reverse roll, offset gravure, metering rod, slot die, knife over roll, air knife, curtain, immersion and spin coating methods, as well as screen printing. EBECRYL 8604 is recommended for use in:
- Automotive OEM or Re-finish
- Exterior durable coatings
- Coatings for wood and plastic requiring excellent exterior durability
- Metal coatings
- Optical coatings
- Non-yellowing topcoats for wood
- Screen inks
Properties
- Physical Form
Regulatory & Compliance
- Certifications & Compliance
- Contains any chemicals listed on Prop 65 (including impurities, residues, catalysts, monomers, and by-products and excluding heavy metals)?
Technical Details & Test Data
- Technical Data
EBECRYL® 8604 - Viscosity Reduction With Reactive Diluents
Graph I shows the viscosity reduction of EBECRYL 8604 with 1,6-hexanediol diacrylate (HDDA), isobornyl acrylate (IBOA), neopentyl glycol propoxylate diacrylate (NPG(PO)2DA) trimethylolpropane triacrylate (TMPTA)and tripropylene glycol diacrylate (TPGDA) Although viscosity reduction can be achieved with non-reactive solvents, reactive diluents are preferred because they are essentially 100 percent converted during UV/EB exposure to form a part of the coating or ink, thus reducing solvent emissions. The specific reactive diluents used will influence performance properties such as hardness and flexibility.

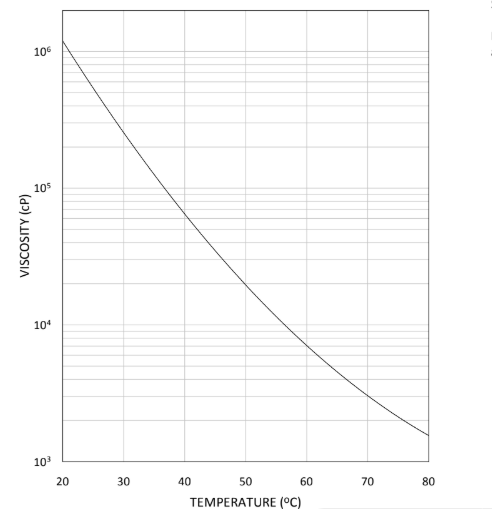

EBECRYL® 8604 - Viscosity vs. Temperature
Packaging & Availability
Principal Information
- Group Principal Number
- S000001
- Principal
Storage & Handling
- Storage Conditions
- Care should be taken not to expose the product to high temperature conditions, direct sunlight, ignition sources, oxidizing agents, alkalis or acids.
- This might cause uncontrollable polymerization of the product with the generation of heat.
- Storage and handling should be in stainless steel, amber glass, amber polyethylene or baked phenolic lined containers.
- Procedures that remove or displace oxygen from the material should be avoided.
- Do not store this material under an oxygen free atmosphere.
- Dry air is recommended to displace material removed from the container.
- Wash thoroughly after handling.
- Keep container tightly closed.
- Use with adequate ventilation.
Other
- Appearance
- Clear liquid
- Appearance (SDS)
- Liquid
- Color (SDS)
- Colorless to light straw
- Insoluble in (SDS)
- Water
- Item Number
- Odor
- Low odor
- Odor (SDS)
- Acrylate
- Other Hazards
- Polymerization may occur from excessive heat, contamination or exposure to direct sunlight .Contact with skin may cause a cross-allergic reaction in persons already sensitized to acrylates
- USA/DOT UN Number
- Not Applicable
- Optical Properties
Value Units Test Method / Conditions Color Scale max. 2.0 Gardner Gardner Color Scale Refractive Index 1.5108 - at 20°C, liquid, at Break, UV cured 125 μ thick films, nD - Mechanical Properties
Value Units Test Method / Conditions Elongation 4.5 % at break, UV cured 125 μ thick films Tensile Modulus 350000.0 psi at break, UV cured 125 μ thick films Tensile Strength 10000.0 psi at break, UV cured 125 μ thick films Tensile Strength 10000.0 psi UV cured 125 µ thick films - Physical Properties
Value Units Test Method / Conditions Density 1.13 g/mL At 25°C Glass Transition Temperature (Tg) 79.0 °C Dynamic Mechanical Analysis (DMA) at break, UV cured 125 μ thick films Glass Transition Temperature (Tg) 79.0 °C Dynamic Mechanical Analysis (DMA) UV cured 125 µ thick films Viscosity 5000.0-8000.0 mPa.s At 60°C - Material Composition
Value Units Test Method / Conditions Isocyanate Content max. 0.2 % - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Boiling Point (SDS) min. 100.0 °C Density (SDS) 1.1-1.15 g/cm³ Flash Point (SDS) min. 100.0 °C Vapor Pressure (SDS) max. 0.13 mm Hg at 20°C Viscosity (SDS) 7000.0-15000.0 mPa.s At 60°C Volatile Content (SDS) 0.0-0.5 %(W/W)
