Enhanced TDS
Identification & Functionality
- Blend
- No
- CASE Ingredients Functions
- Chemical Family
- Function
- Binder
- Product Code
- MITM15210
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- CASE Ingredients Features
- Performance Highlights
EBECRYL® 8606 is characterized by:
- Light color
- Low odor
UV/EB cured products containing EBECRYL® 8606 are characterized by the following performance properties:
- Outstanding toughness
- Excellent abrasion resistance
- Excellent weatherability
- Thermoformable after cure (small to medium draws)
- Flexibility
- Good adhesion
- Non-yellowing
The actual properties of UV/EB cured products also depend on the selection of other formulation components, such as reactive diluents, additives and photo initiators.
Applications & Uses
- Application Method
- Coating End Applications
- Compatible Substrates & Surfaces
- Cure Method
- Ink & Toner End Applications
- Markets
- Applications
- Product Application
- Formulated UV/EB curable products containing EBECRYL® 8606 may be applied via direct or reverse roll, offset gravure, metering rod, slot die, knife over roll, air knife, curtain, immersion and spin coating methods, as well as screen printing.
EBECRYL® 8606 is recommended for use in:
- Automotive paint protection films
- Automotive OEM or Re-finish
- Coatings for plastic and wood requiring excellent exterior durability
- Printed electronics
- Post-formable coatings for plastic, metallized plastic, metal, and conduit substrates
- Optical coatings
- Non-yellowing topcoats for wood
- Pigmented coatings for wood
- Screen inks
- Thermoformable inks
- Exterior durable coatings
Properties
- Physical Form
Regulatory & Compliance
- Certifications & Compliance
- Contains any chemicals listed on Prop 65 (including impurities, residues, catalysts, monomers, and by-products and excluding heavy metals)?
Technical Details & Test Data
- Viscosity Reduction

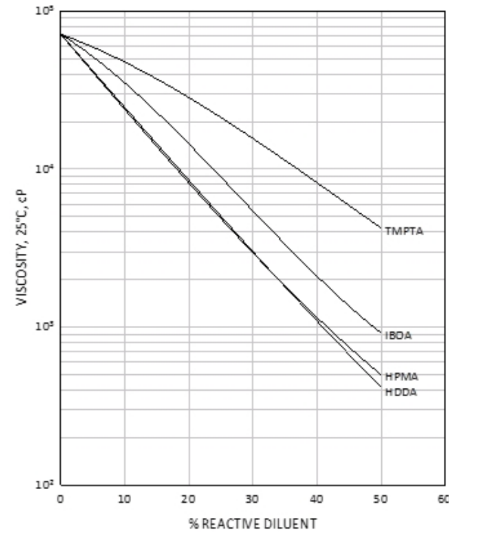

GRAPH I:EBECRYL® 8606 - VISCOSITY REDUCTION WITH REACTIVE DILUENTS

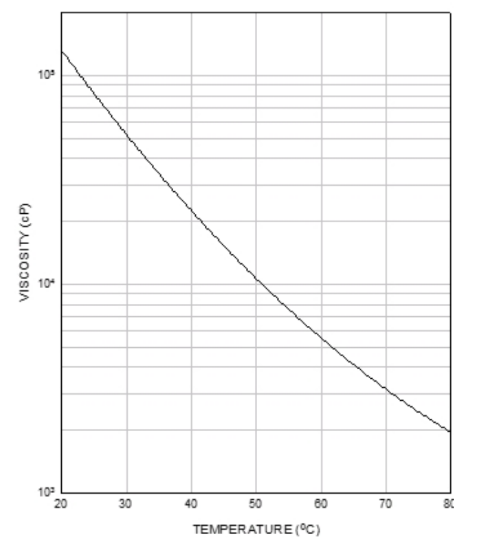

GRAPH II:EBECRYL® 8606 - VISCOSITY VS. TEMPERATURE
- Graph I shows the viscosity reduction of EBECRYL® 8606 with 1,6- hexanediol diacrylate (HDDA)¹ , hydroxypropyl methacrylate (HPMA)¹ , isobornyl acrylate (IBOA)¹ and trimethylolpropane triacrylate (TMPTA)¹ .
- Although viscosity reduction can be achieved with non- reactive solvents, reactive diluents are preferred because they are essentially 100 percent converted during UV/EB exposure to form a part of the coating or ink, thus reducing solvent emissions.
- The specific reactive diluents used will influence performance properties such as hardness and flexibility.
- Graph II illustrates the change in viscosity of EBECRYL® 8606 with increasing temperature.
- ¹ Product of allnex.
Principal Information
- Group Principal Number
- S000001
- Principal
Storage & Handling
- Storage and Handling Conditions
- Care should be taken not to expose the product to high temperature conditions, direct sunlight, ignition sources, oxidizing agents, alkalis or acids.
- This might cause uncontrollable polymerization of the product with the generation of heat.
- Storage and handling should be in stainless steel, amber glass, amber polyethylene or baked phenolic lined containers.
- Procedures that remove or displace oxygen from the material should be avoided.
- Do not store this material under an oxygen free atmosphere.
- Dry air is recommended to displace material removed from the container.
- Wash thoroughly after handling.
- Keep container tightly closed.
- Use with adequate ventilation.
Other
- Appearance
- Clear liquid
- Appearance (SDS)
- Liquid
- Color (SDS)
- Clear to hazy, colorless to amber
- Odor (SDS)
- Acrylate
- Other Hazards
- Polymerization may occur from excessive heat ,contamination or exposure to direct sunlight , Contact with skin may cause a cross-allergic reaction in persons already sensitized to acrylates.
- USA/DOT UN Number
- Not Applicable
- Optical Properties
Value Units Test Method / Conditions Color Scale max. 1.0 Gardner Gardner Color Scale - Mechanical Properties
Value Units Test Method / Conditions Elongation 70.0 % at break, UV cured 125µm thick films Tensile Modulus 634.0 MPa measured on UV cured 125μm thick films Tensile Strength 34.0 MPa measured on UV cured 125μm thick films - Physical Properties
Value Units Test Method / Conditions Density 1.13 g/cm³ At 25°C Viscosity 8100.0 mPa.s At 60°C - Material Composition
Value Units Test Method / Conditions Isocyanate Content max. 0.1 % Oligomer Content 100.0 %(W/W) - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Boiling Point (SDS) min. 100.0 °C Decomposition Temperature (SDS) min. 150.0 °C Density (SDS) 1.1-1.15 g/cm³ Flash Point (SDS) 154.0 °C Cleveland Open Cup Melting Point (SDS) 30.0-40.0 °F Solubility In Water (SDS) 0.0-1.5 g/L minimal Vapor Pressure (SDS) max. 0.13 mm Hg at 20°C Viscosity (SDS) 6000.0-20000.0 cPs at 60°C, very viscous liquid Volatile Content (SDS) max. 0.5 %(W/W)
