EBECRYL® 3700-20T

EBECRYL® 3700-20T is characterized by:

• Fast UV/EB cure response
• Low odor

UV/EB cured products based on EBECRYL 3700-20T are characterized by the following performance properties:

• Excellent chemical resistance
• High gloss
• High surface hardness
• Good scratch resistance

The final properties of UV/EB cured products also depend on the selection of other formulation components such as reactive diluents, additives and photoinitiators.

Formulated UV/EB curable products containing EBECRYL® 3700-20T may beapplied via direct or reverse roll, offset gravure, metering rod, slot die, knife over roll, air knife, curtain, immersion and spin coating methods, as well as offset and screen printing.

EBECRYL® 3700-20T is recommended for use in:

• Clear coatings for paper and plastics
• Adhesives for paper lamination
• Lithographic and screen inks
• Wood fillers
• Overprint varnishes
• Paper upgrading

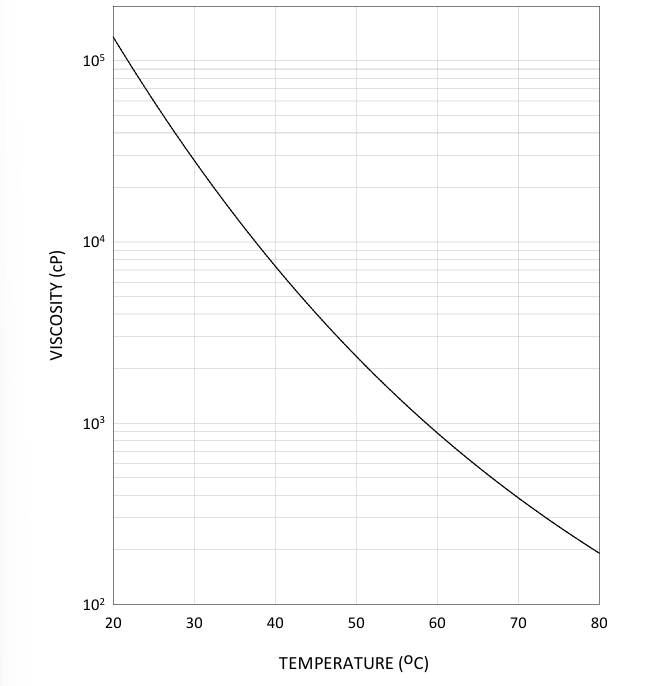

EBECRYL® 3700-20T - Viscosity vs. Temperature:

Graph illustrates the change in viscosity of EBECRYL® 3700-20T with increasing temperature.

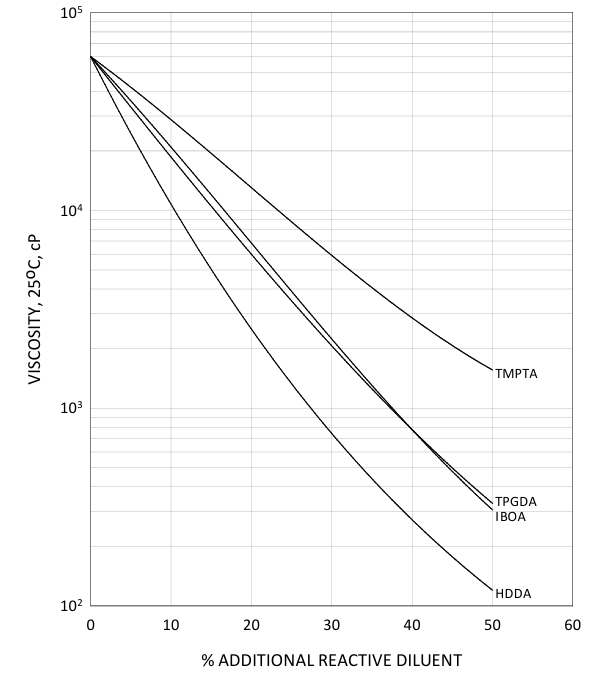

EBECRYL® 3700-20T - Viscosity Reduction With Reactive Diluents:

• Graph shows the viscosity reduction of EBECRYL 3700-20T with 1,6-hexanediol diacrylate (HDDA), isobornyl acrylate (IBOA), trimethylolpropane triacrylate (TMPTA), and tripropylene glycol diacrylate (TPGDA).
• Although viscosity reduction can be achieved with non-reactive solvents, reactive diluents are preferred because they are converted during UV/EB exposure to form a part of the coating or ink, thus reducing solvent emissions.
• The specific reactive diluents used will influence performance properties such as hardness and flexibility.

• Care should be taken not to expose the product to high temperature conditions, direct sunlight, ignition sources, oxidizing agents, alkalis or acids.
• This might cause uncontrollable polymerization of the product with the generation of heat.
• Storage and handling should be in stainless steel, amber glass, amber polyethylene or baked phenolic lined containers.
• Procedures that remove or displace oxygen from the material should be avoided.
• Do not store this material under an oxygen free atmosphere.
• Dry air is recommended to displace material removed from the container.
• Wash thoroughly after handling.
• Keep container tightly closed.
• Use with adequate ventilation.
