Enhanced TDS
Identification & Functionality
- Blend
- No
- CASE Ingredients Functions
- Chemical Family
- Function
- Binder
- Product Code
- MITM00412
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- CASE Ingredients Features
- Performance Highlights
EBECRYL®4858 is characterized by:
- Low viscosity
- Light color
UV/EB cured products containing EBECRYL®4858 are characterized by the following performance properties:
- Abrasion resistant
- Chemical resistance
- Flexibility
- Impact resistance
- Toughness
- Excellent outdoor durability
The actual properties of UV/EB cured products also depend on the selection of other formulation components such as reactive diluents, additives and photoinitiators.
Applications & Uses
- Application Method
- Coating End Applications
- Compatible Substrates & Surfaces
- Cure Method
- Ink & Toner End Applications
- Markets
- Applications
- Product Application
Formulated UV/EB curable products containing EBECRYL®4858 may be applied via direct or reverse roll, offset gravure, metering rod, slot die, knife over roll, air knife, curtain, immersion and spin coating methods, as well as flexographic and screen printing.
EBECRYL® 4858 is recommended for:
- Ophthalmic lens casting
- Coatings on rigid and flexible plastics
- Diluent for higher viscosity urethanes
- Wood coatings
- Screen inks
Properties
- Physical Form
Regulatory & Compliance
- Certifications & Compliance
- Contains any chemicals listed on Prop 65 (including impurities, residues, catalysts, monomers, and by-products and excluding heavy metals)?
Technical Details & Test Data
- Viscosity Reduction

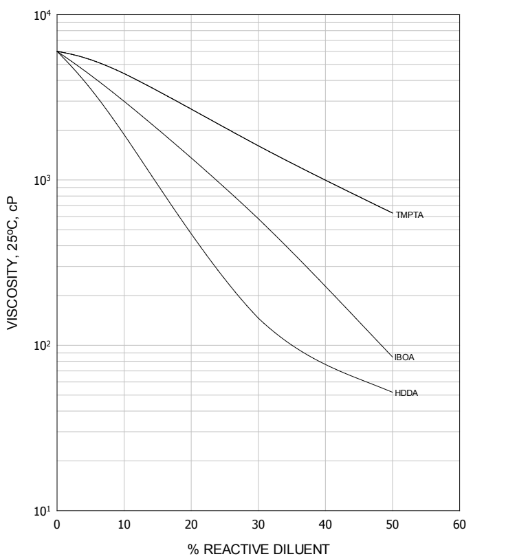

GRAPH I:EBECRYL®4858 - VISCOSITY REDUCTION WITH REACTIVE DILUENTS

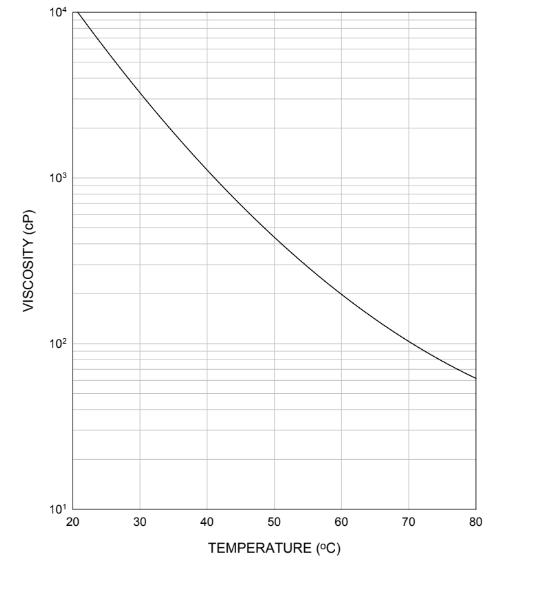

GRAPH II:EBECRYL®4858 - VISCOSITY VS. TEMPERATURE
- Graph I shows the viscosity reduction of EBECRYL®4858 with 1,6-hexanediol diacrylate (HDDA)¹, isobornyl acrylate (IBOA)¹, and trimethylolpropane triacrylate (TMPTA)¹.
- Although viscosity reduction can be achieved with non- reactive solvents, reactive diluents are preferred because they are essentially 100 percent converted during UV/EB exposure to form a part of the coating or ink, thus reducing solvent emissions.
- The specific reactive diluents used will influence performance properties such as hardness and flexibility.
- Graph II illustrates the change in viscosity of EBECRYL®4858 with increasing temperature.
- ¹ Product of allnex
Packaging & Availability
Principal Information
- Group Principal Number
- S000001
- Principal
Storage & Handling
- Storage and Handling Conditions
- Care should be taken not to expose the product to high temperature conditions, direct sunlight, ignition sources, oxidizing agents, alkalis or acids.
- This might cause uncontrollable polymerization of the product with the generation of heat.
- Storage and handling should be in stainless steel, amber glass, amber polyethylene or baked phenolic lined containers.
- Procedures that remove or displace oxygen from the material should be avoided.
- Do not store this material under an oxygen free atmosphere.
- Dry air is recommended to displace material removed from the container.
- Wash thoroughly after handling.
- Keep container tightly closed.
- Use with adequate ventilation.
Other
- Appearance
- Clear liquid
- Appearance (SDS)
- Clear liquid
- Color (SDS)
- Yellowish
- IATA/ICAO Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- IATA/ICAO Technical name (N.O.S.)
- Acrylated resin
- IATA/ICAO UN Number
- UN3082
- IMO/IMDG Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- IMO/IMDG Technical name (N.O.S.)
- Acrylated resin
- IMO/IMDG UN Number
- UN3082
- Item Number
- Odor (SDS)
- Ester
- Other Hazards
- Polymerization may occur from excessive heat, contamination or exposure to direct sunlight .
- TDG Canada Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- TDG Canada Technical name (N.O.S.)
- Acrylated resin
- TDG Canada UN Number
- UN3082
- USA/DOT Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- USA/DOT Technical name (N.O.S.)
- Acrylated resin
- USA/DOT UN Number
- UN3082
- Optical Properties
Value Units Test Method / Conditions Color Scale max. 1.0 Gardner Gardner Gardner Color Scale - Chemical Properties
Value Units Test Method / Conditions Acid Value max. 5.0 mg KOH/g mg KOH/g - Mechanical Properties
Value Units Test Method / Conditions Elongation 3.5 % % at break, UV cured 100μm thick films Tensile Modulus 1848.0 MPa MPa UV cured 100 μ thick films Tensile Strength 39.0 MPa MPa UV cured 100 μ thick films - Physical Properties
Value Units Test Method / Conditions Density 1.14 g/mL g/mL At 25°C Glass Transition Temperature (Tg) 54.0 °C °C UV cured 100 μ thick films Viscosity 5700.0-8300.0 mPa.s mPa.s At 25°C - Material Composition
Value Units Test Method / Conditions Oligomer Content 100.0 %(W/W) %(W/W) - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Autoignition Temperature (SDS) 425.0 °C °C Boiling Point (SDS) min. 250.0 °C °C Density (SDS) 1.14 g/cm³ g/cm³ Flash Point (SDS) 196.0 °C °C Cleveland Open Cup Partition coefficient n-octanol/water (SDS) 2.7 - OECD 117 at 21°C, n-Octanol/Water Solubility In Water (SDS) 224.0 mg/L mg/L at 20°C Vapor Pressure (SDS) 0.7 Pa Pa at 20°C
