EBECRYL® 809

EBECRYL® 809 is characterized by:

• Moderate viscosity
• Light color
• Good UV/EB cure response

UV/EB cured products based on EBECRYL® 809 are characterized by the following performance properties:

• Good flexibility
• Surface hardness
• High gloss
• Toughness

The actual properties of UV/EB cured products also depend on the selection of other formulation components such as reactive diluents, additives and photoinitiators.

Formulated UV/EB curable products containing EBECRYL® 809 may be applied via direct or reverse roll, offset gravure, metering rod, slot die, knife over roll, air knife, curtain and immersion coating methods, as well as offset and screen printing. EBECRYL® 809 is recommended for use in:

• Clear coatings for paper, wood, flexible and rigid plastics
• Wood sealers
• Topcoats for wood
• Metal decorating vehicles
• Adhesives for paper or film lamination

EBECRYL® 809 - Viscosity reduction with reactive diluents

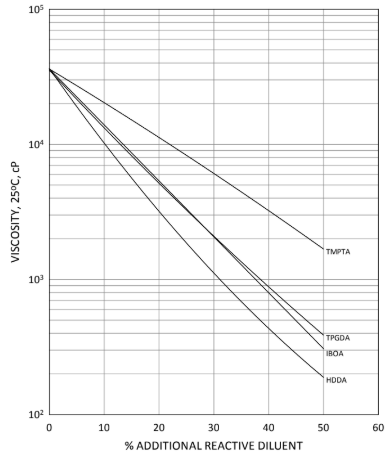

Graph I shows the viscosity reduction of EBECRYL® 809 with 1,6-hexanediol diacrylate (HDDA), isobornyl acrylate (IBOA)(1), trimethylolpropane triacrylate (TMPTA), and tripropylene glycol diacrylate (TPGDA). Although viscosity reduction can be achieved with non-reactive solvents, reactive diluents are preferred because they are essentially 100 percent converted during UV/EB exposure to form a part of the coating, thus reducing solvent emissions. The specific reactive diluents used will influence performance properties such as hardness and flexibility.

EBECRYL® 809 - Viscosity vs. Temperature

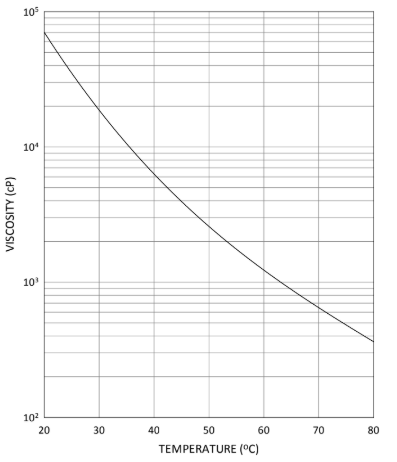

Graph II illustrates the change in viscosity of EBECRYL® 809 with increasing temperature.

• Care should be taken not to expose the product to high temperature conditions, direct sunlight, ignition sources, oxidizing agents, alkalis or acids. This might cause uncontrollable polymerization of the product with the generation of heat.
• Storage and handling should be in stainless steel, amber glass, amber polyethylene or baked phenolic lined containers. Procedures that remove or displace oxygen from the material should be avoided. Do not store this material under an oxygen free atmosphere.
• Dry air is recommended to displace material removed from the container. Wash thoroughly after handling. Keep container tightly closed. Use with adequate ventilation.
