Enhanced TDS
Identification & Functionality
- Blend
- No
- CASE Ingredients Functions
- Chemical Family
- Function
- Binder
- Product Code
- MITM00422
- Single Ingredient
- Yes
- Technologies
- Product Families
Features & Benefits
- CASE Ingredients Features
- Performance Highlights
EBECRYL 605 is characterized by:
- Light color
- Low viscosity
UV/EB cured properties based on EBECRYL 605 are characterized by the following performance properties:
- Fast cure response
- Good surface hardness
- High gloss
- Good chemical resistance
Applications & Uses
- Adhesive & Sealant End Applications
- Application Method
- Coating End Applications
- Compatible Substrates & Surfaces
- Cure Method
- Ink & Toner End Applications
- Markets
- Applications
- Product Applications
Formulated UV/EB curable products containing EBECRYL 605 may be applied via direct or reverse roll, offset gravure, metering rod, slot die, knife over roll, air knife, curtain, immersion and spin coating methods, as well as offset and screen printing. EBECRYL 605 is recommended for use in:
- Overprint varnishes
- Coatings for wood, chipboard, paper and rigid plastics
- Lithographic inks and coatings
- Paper upgrading
- Screen print inks and coatings
- Adhesive for paper laminations
- Wood fillers
Properties
- Physical Form
- Product Properties
- Fast cure response
- Good surface hardness
- High gloss
- Good chemical resistance
Technical Details & Test Data
- Technical Data

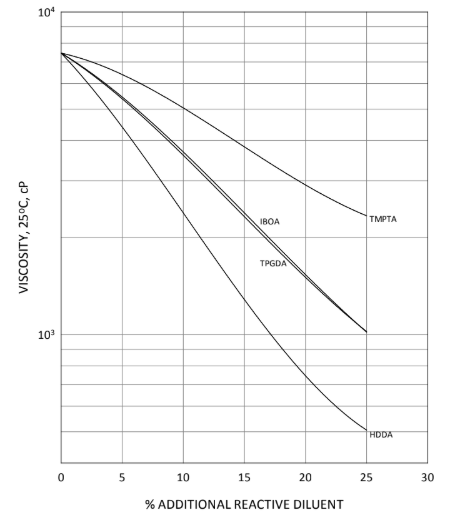

EBECRYL® 605 - Viscosity Reduction With Reactive Diluents
Graph I shows the viscosity reduction of EBECRYL® 605 with 1,6-hexanediol diacrylate (HDDA), isobornyl acrylate (IBOA) trimethylolpropane triacrylate (TMPTA), and tripropylene glycol diacrylate (TPGDA). Although viscosity reduction can be achieved with non-reactive solvents, reactive diluents are preferred because they are essentially 100 percent converted during UV/EB exposure to form a part of the coating or ink, thus reducing solvent emissions. The specific reactive diluents used will influence performance properties such as hardness and flexibility.

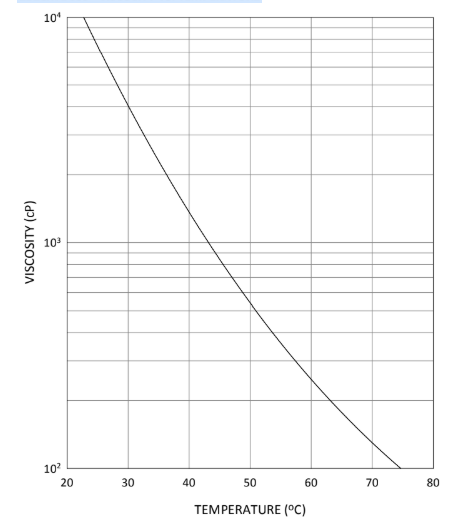

EBECRYL® 605 - Viscosity vs. Temperature
Packaging & Availability
Principal Information
- Group Principal Number
- S000001
- Principal
Storage & Handling
- Storage Conditions
- Care should be taken not to expose the product to high temperature conditions, direct sunlight, ignition sources, oxidizing agents, alkalis or acids.
- This might cause uncontrollable polymerization of the product with the generation of heat.
- Storage and handling should be in stainless steel, amber glass, amber polyethylene or baked phenolic lined containers.
- Procedures that remove or displace oxygen from the material should be avoided.
- Do not store this material under an oxygen free atmosphere.
- Dry air is recommended to displace material removed from the container.
- Wash thoroughly after handling.
- Keep container tightly closed.
- Use with adequate ventilation.
Other
- Appearance
- Clear liquid
- Appearance (SDS)
- Liquid
- Color (SDS)
- Yellowish
- IATA/ICAO Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- IATA/ICAO Technical name (N.O.S.)
- Tripropylene glycol diacrylate
- IATA/ICAO UN Number
- UN3082
- IMO/IMDG Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- IMO/IMDG Technical name (N.O.S.)
- Tripropylene glycol diacrylate
- IMO/IMDG UN Number
- UN3082
- Insoluble in (SDS)
- Water
- Item Number
- Odor (SDS)
- Ester acrylate
- Other Hazards
- Polymerization may occur from excessive heat, contamination or exposure to direct sunlight .
- Protect from Freezing
- Yes
- TDG Canada Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- TDG Canada Technical name (N.O.S.)
- Tripropylene glycol diacrylate
- TDG Canada UN Number
- UN3082
- Temperature Control
- Yes
- USA/DOT Proper Shipping Name
- Environmentally hazardous substance, liquid, N.O.S.
- USA/DOT Technical name (N.O.S.)
- Tripropylene glycol diacrylate
- USA/DOT UN Number
- UN3082
- Chemical Properties
Value Units Test Method / Conditions Acid Value max. 2.0 mg KOH/g mg KOH/g Epoxy Group Content max. 0.5 % % - Mechanical Properties
Value Units Test Method / Conditions Elongation 7.0 - at break, UV cured 125 μ thick films Tensile Modulus 196000.0 psi psi at break, UV cured 125 μ thick films Tensile Modulus 196000.0 psi psi UV cured 125 µ thick films Tensile Strength 8300.0 psi psi at break, UV cured 125 μ thick films Tensile Strength 8300.0 psi psi UV cured 125 µ thick films - Optical Properties
Value Units Test Method / Conditions Color Scale max. 2.0 Gardner Gardner Gardner Color Scale - Physical Properties
Value Units Test Method / Conditions Density 1.146 g/mL g/mL At 25°C Glass Transition Temperature (Tg) 92.0 °C °C Dynamic Mechanical Analysis (DMA) at break, UV cured 125 μ thick films Glass Transition Temperature (Tg) 92.0 °C °C Dynamic Mechanical Analysis (DMA) UV cured 125 µ thick films Storage Temperature 39.2-104.0 °F °F Viscosity 6000.0-9000.0 - At 25°C - SDS Physical and Chemical Properties
Value Units Test Method / Conditions Boiling Point (SDS) min. 100.0 °C °C Density (SDS) 1.17 g/cm³ g/cm³ Storage Temperature (SDS) 4.0-40.0 °C °C Vapor Pressure (SDS) 0.013 - at 20°C Volatile Content (SDS) max. 0.3 % % - Shelf Life & Stability
Value Units Test Method / Conditions Shelf Life 0.0 -
